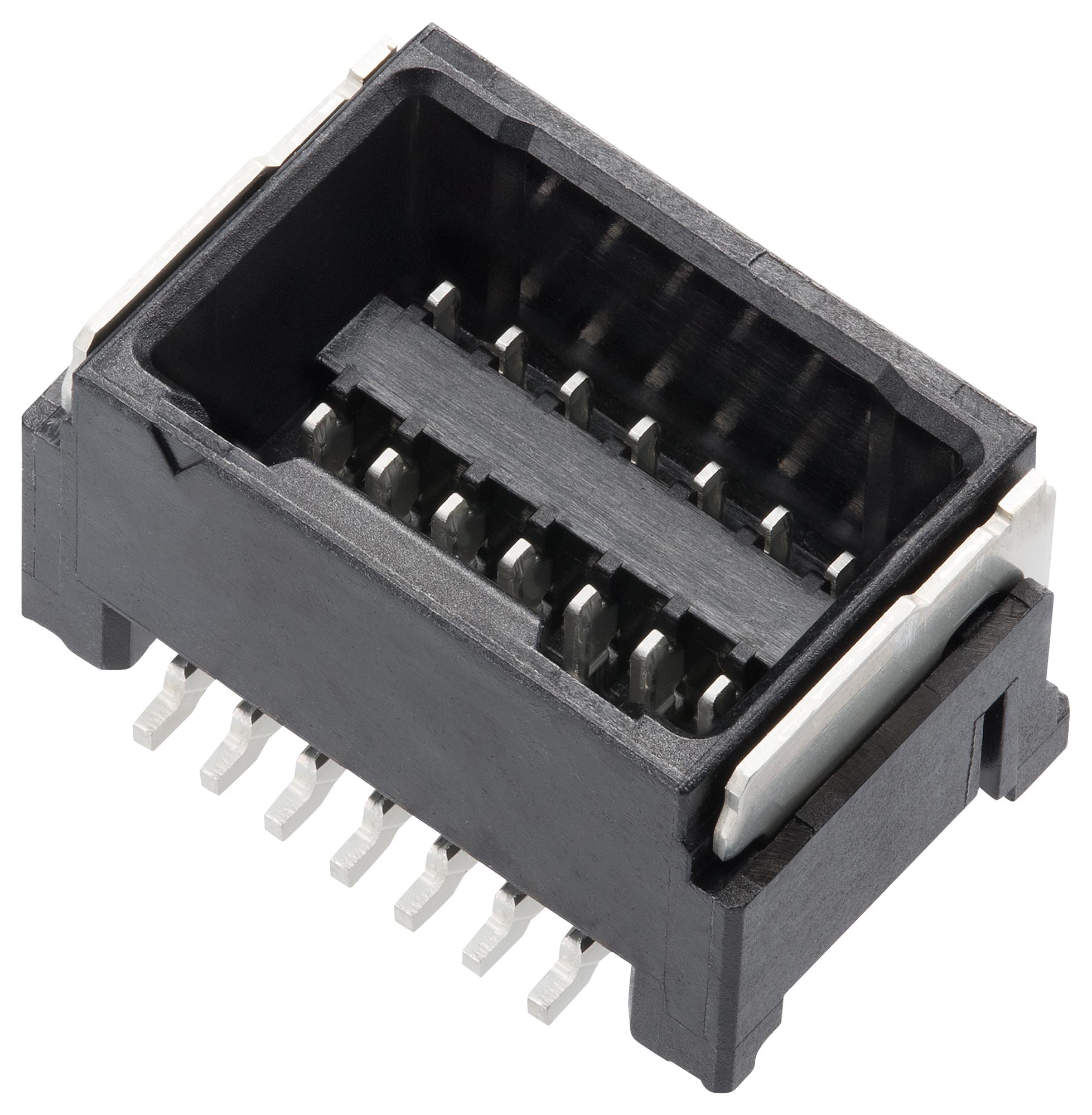

MOLEX 5054331691 Micro-Lock Plus Connector
This Micro-Lock Plus PCB header features a 1.25mm pitch and dual row, surface-mount design suitable for wire-to-board connections. Constructed with brass and gold plating, it offers a robust 16 circuits capacity with a maximum of 50V AC/DC and a temperature range of -40°C to +105°C. Packaged in embossed tape on reel for easy handling, it is RoHS compliant and designed for up to 50 mating cycles, ensuring durability. Its compact size and reliable contact materials make it ideal for industrial and electronic assembly applications requiring precise, secure connections.
MOLEX 5054331691 Micro-Lock Plus Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 16
- Material - Metal: Brass
- Plating - Mating: Gold
- Color - Resin: Black
- Temperature Range: -40°C to +105°C
- Voltage - Maximum: 50V AC/DC
- Durability (mating cycles max): 50
- Packaging: Embossed tape on reel
- Orientation: Vertical
- Terminations: Surface Mount
- Net Weight: 1067.620 mg
- Guide to Mating Part: Micro-Lock Plus Receptacle Housing
- RoHS Compliant: Yes
- Halogen-Free: Not Low-Halogen
Buy the Buy Molex Micro-Lock Plus PCB Header Part Number 5054331691 Online
Secure your device connections with the Molex Micro-Lock Plus PCB header, featuring 1.25mm pitch, gold-plated contacts, and robust construction for up to 50 mating cycles. Ideal for compact electronic assemblies, this surface-mount connector ensures a reliable and durable connection with safe voltage capacity of 50V. Packed in tape and reel for convenient handling, it complies with RoHS standards and operates within -40°C to +105°C temperature range, making it perfect for industrial, automation, and electronic applications requiring high performance and longevity.
Order your Molex Series505433 5054331691 Micro-Lock Plus PCB header today and ensure reliable, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5054331691?
You can click on the BUY or RFQ button to purchase 5054331691 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5054331691?
You can download the 5054331691 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5054331691?
MOLEX
