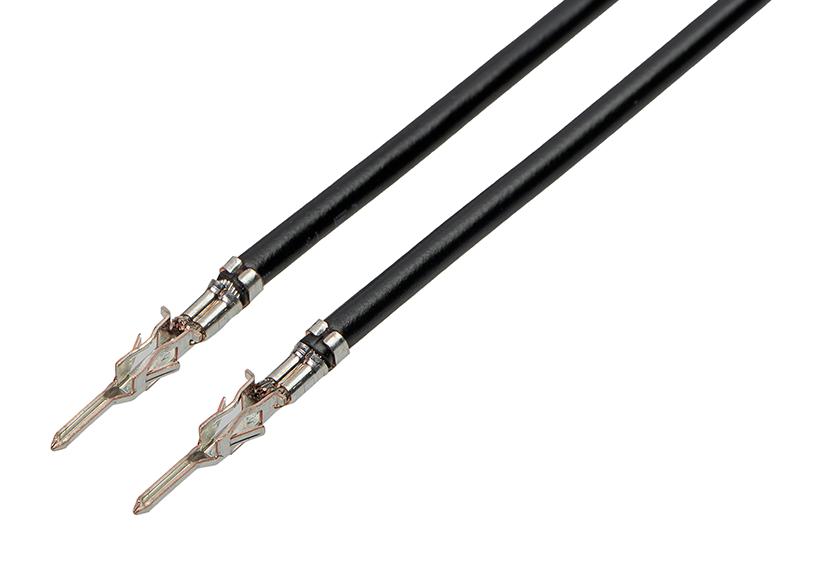

MOLEX 2147621225 Micro-Fit 3.0 Pre-Crimped Lead
The MOLEX 214762-1225 is a pre-crimped lead assembly designed for reliable wire-to-wire power connections. This assembly utilizes Micro-Fit 3.0 connectors, ensuring compatibility with a wide range of applications. The gold plating on the mating interface provides excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. With a length of 450.00mm and an 18 AWG wire gauge, this lead is suitable for various power transmission needs in industrial and commercial settings. It is RoHS compliant and features a black resin color.
MOLEX 2147621225 Micro-Fit 3.0 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male, Gold (Au) Plated
- cable_length: 450.00mm
- wire_size: 18 AWG
- circuits_loaded: 1
- color: Black (Resin)
- gender: Male-Male
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.85mm max.
- current_max_per_contact: 8.5A
- upc: 193264574810
- net_weight: 5.081/g
- single_ended: No
