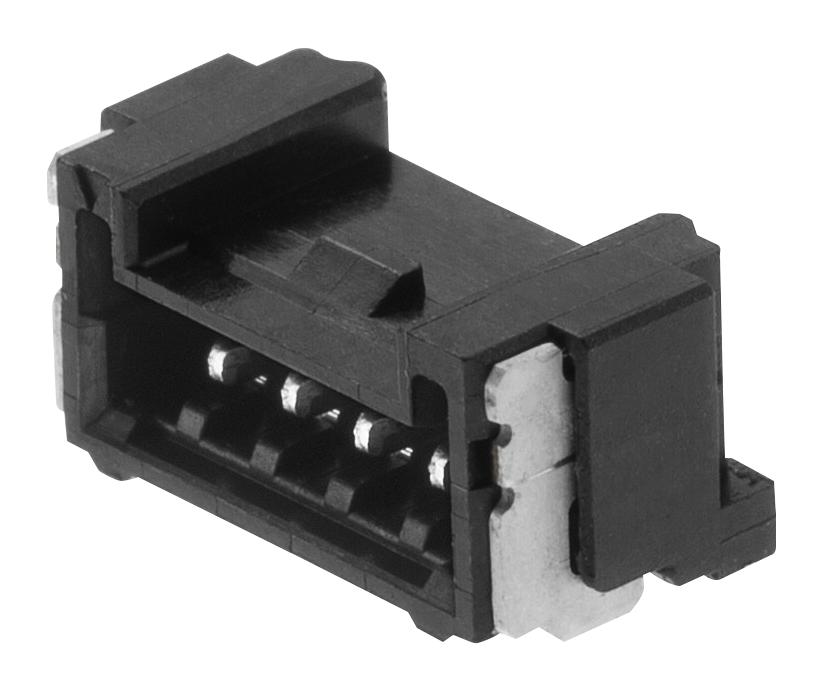

MOLEX 5055670671 Micro-Lock Connector
The Micro-Lock PLUS Right Angle Header is a compact, durable 1.25mm pitch wire-to-board connector system featuring single-row configuration with six circuits and Tin-Bismuth plating. Designed for reliable connections in compact electronics, it supports up to 30 mating cycles, operates within a temperature range of -40°C to +105°C, and carries a maximum current per contact of 1.5A. Made from high-quality brass and polyamide for strength and resistance, this black, surface-mount connector complies with RoHS, ELV, and REACH standards, making it ideal for various applications requiring secure, low-profile connections.
MOLEX 5055670671 Micro-Lock Connector Specifications:
- Pitch: 1.25mm
- Circuits: 6
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Operating Temperature Range: -40°C to +105°C
- Max Current per Contact: 1.5A
- Durability (Mating Cycles): 30
- Surface Mount: Yes
- Voltage Rating: 50V AC/DC
- Locking: Yes, Lock to Mating Part
- Polarized: Yes
- Packaged as Embossed Tape on Reel
- RoHS & ELV compliant
Buy the Molex Series Micro-Lock Plus Connector: 5055670671
Purchase the Micro-Lock PLUS right angle connector, 1.25mm pitch, six circuits, and Tin-Bismuth plating online now. Designed for durability and reliable connections, it supports up to 30 mating cycles and operates within -40°C to +105°C. Its surface-mount design makes installation quick and easy for professional electronics assembly. Certified RoHS and ELV compliant, this connector suits applications requiring secure, low-profile, and environmentally friendly wiring. Order today for fast delivery and ensure your project’s success with high-performance, dependable components.
Get Molex 5055670671 today—built for reliable, high-quality connections in compact electronics and automation systems.
Frequently Asked Questions
Where can I buy MOLEX 5055670671?
You can click on the BUY or RFQ button to purchase 5055670671 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5055670671?
You can download the 5055670671 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5055670671?
MOLEX
