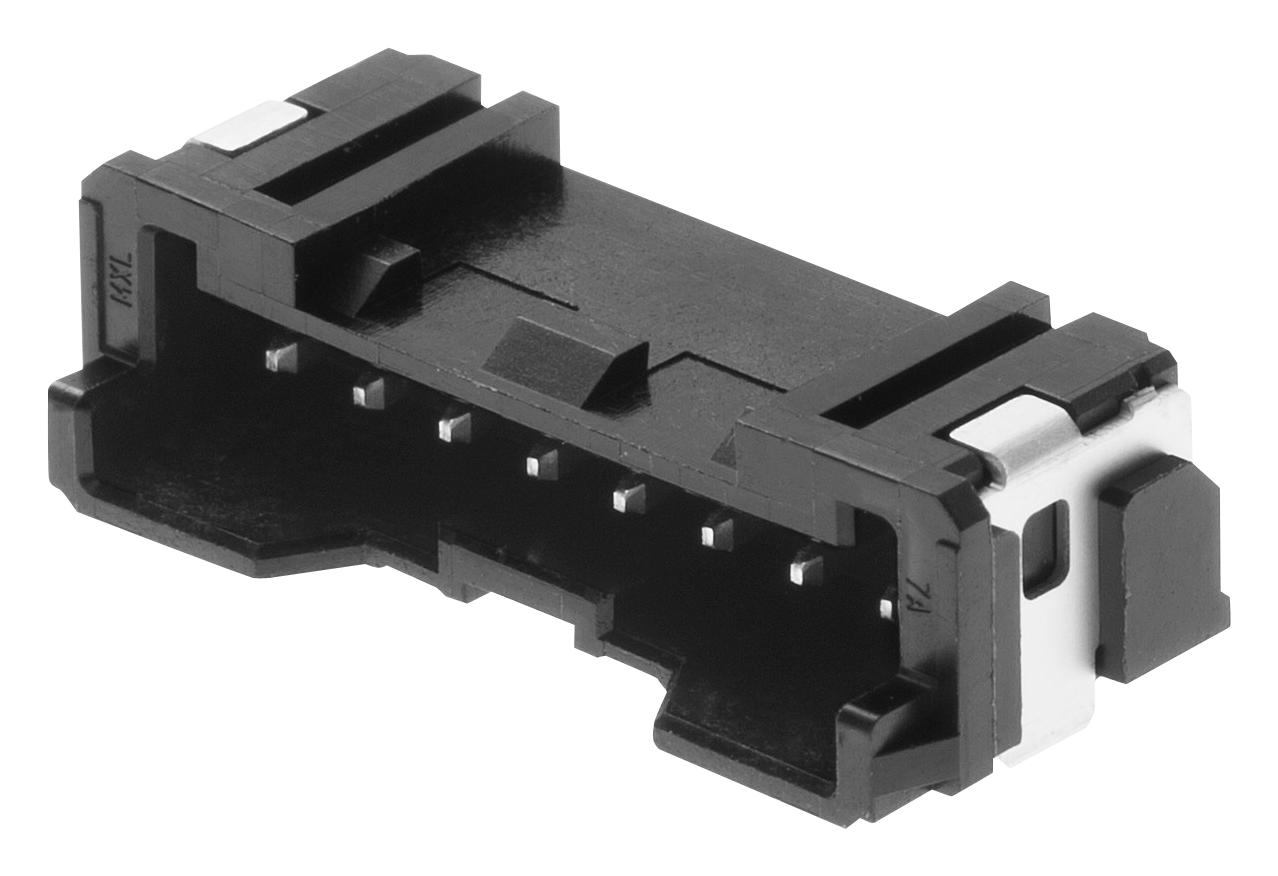

MOLEX 5055780471 Micro-Lock Plus Connector
The Micro-Lock PLUS Right Angle Header is a 2.00mm pitch, single row, wire-to-board connector designed for signal applications. Made with polyamide resin and matte tin-plated brass contacts, it offers durability up to 30 mating cycles. The black low-halogen housing ensures environmental compliance, and the connector supports a maximum current of 3.0A per contact at voltages up to 250V AC/DC. It features PCB retention, right angle orientation, and surface mount termination, suitable for industrial signal and electronic manufacturing connectors.
MOLEX 5055780471 Micro-Lock Plus Connector Specifications:
- Pitch: 2.00mm
- Number of Circuits: 4
- Material: Brass with matte tin plating
- Housing Material: Polyamide resin, black, low-halogen
- Connections: Surface Mount Termination
- Orientation: Right Angle
- Maximum Current: 3.0A per contact
- Maximum Voltage: 250V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 30 mating cycles
- Number of Rows: 1
- PCB retention: Yes
- Keying to Mating Part: None
- Color: Black
- RoHS and China RoHS compliant
- Glow-Wire Capable: No
Buy the Molex 5055780471 – Reliable Micro-Lock Plus Signal Connectors for Industrial Applications
Enhance your electronic assemblies with the Micro-Lock PLUS connector featuring a 2.00mm pitch, four circuits, and surface mount design. This rugged, black polyamide housing is halogen-free and RoHS compliant, making it ideal for industrial and consumer electronics. With brass contacts plated in matte tin, it offers excellent electrical performance and durability of up to 30 mating cycles. Designed for signal applications, this right angle connector delivers reliable connections, supporting up to 3A of current and 250V voltage, suitable for various electronic projects.
Order your Molex 5055780471 Series Micro-Lock PLUS Right Angle Connector today and ensure reliable, durable wire-to-board connections for your electronic projects.
