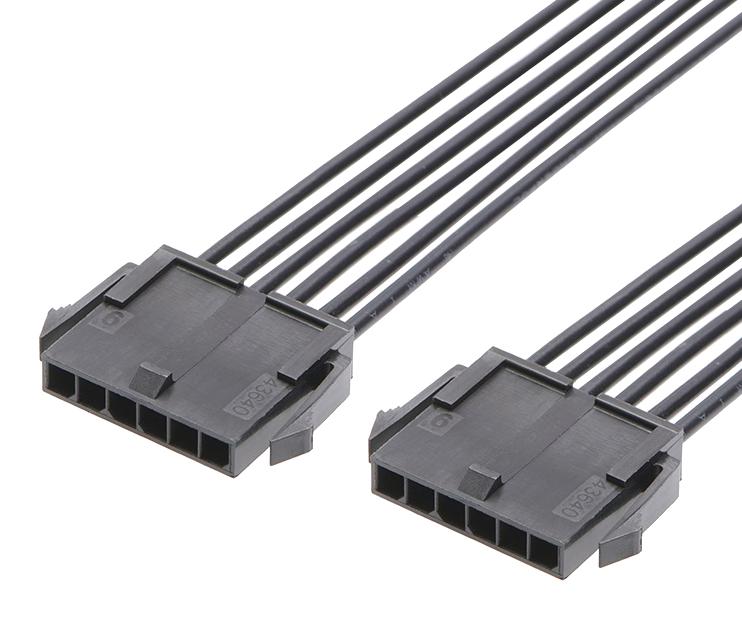

MOLEX 2147521083 Micro-Fit Connector Assembly
Standard Micro-Fit cable assemblies offer ready-to-use solutions with various cable lengths and a 3.00mm pitch connector. Designed to support current ratings between 6.5A and 8.5A, these assemblies are suitable for both prototyping and international production. They feature a Micro-Fit 3.0 male to Micro-Fit 3.0 male configuration, providing high-density, low-power connections. The design reduces terminal back-out and is available in single-row configurations for greater design flexibility. The dual-ended connectors are made of black nylon resin and utilize UL 10002 discrete wire, ensuring reliable power and signal transfer in diverse applications.
MOLEX 2147521083 Micro-Fit Connector Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 8
- Color: Black
- Connector Type: Male-to-Male
- Material - Resin: Nylon
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Current - Maximum per Contact: 8.5A
- Wire Size AWG: 18
- Wire Insulation Diameter: 1.85mm max.
- Pitch - Mating Interface: 3.00mm
- Material - Metal: Phosphor Bronze
- Net Weight: 14.616g
- RoHS Compliant
- UL 10002 Discrete Wire
- Status: Active
Buy the Molex 2147521083 – Reliable Micro-Fit Power for Industrial Applications
Purchase the Micro-Fit Connector Assembly online now for versatile power and control applications. This reliable 8-circuit cable features a 3.00mm pitch, 600mm length, and durable black nylon resin construction. Supporting up to 8.5A per contact, it’s ideal for prototyping and production requiring secure, high-density wire-to-wire connections. With UL 10002 compliant discrete wire, it ensures safety and performance. Order today for fast delivery and make your electronic projects or industrial systems more efficient and dependable.
Get Molex 2147521083 today—built for high-density power and signal connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2147521083?
You can click on the BUY or RFQ button to purchase 2147521083 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147521083?
You can download the 2147521083 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147521083?
MOLEX
