MOLEX 50579309 SL Crimp Housing

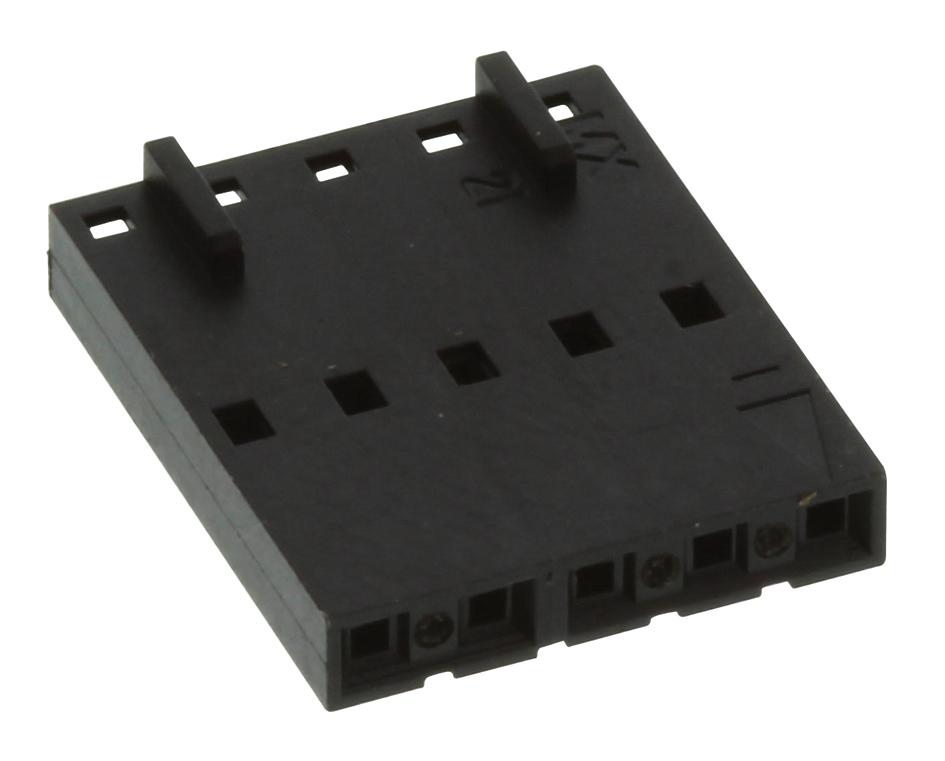

The MOLEX 50-57-9309 SL Crimp Housing is a critical component in SL Modular Connector systems, commonly used in wire-to-board applications across various industries. This single-row housing, version D, provides a secure and reliable connection for 9 circuits. Its black color and polyester alloy construction offer durability and aesthetic appeal. Designed with back ribs for enhanced retention, it's compatible with SL Crimp Terminals and offers a robust solution for signal transmission.
MOLEX 50579309 SL Crimp Housing Specifications:
- status: Active
- overview: SL Modular Connectors
- description: SL Crimp Housing, Single Row, Version D, Back Ribs, 9 Circuits, Black
- series: 70066
- application: Signal, Wire-to-Board
- upc: 800753578104
- circuits_maximum: 9
- color: Black
- resin_flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: No
- lock_to_mating_part: No
- material_resin: Polyester
- material_alloy: Alloy
- net_weight_g: 0.689
- packaging_type: 1 Bag
- panel_mount: No
- pitch_mating_interface: 2.54mm
- stackable: Yes
- temperature_range_operating_c: -40° to +105°
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per -ED/88/2018
- halogen_free_status: Low-Halogen
- lead_free_process_capability: N/A
- engineering_number: 70066-0113
- mates_with: 70004, 70013, 70022, 70104, 70475, 70431, 70543, 70553
- use_with: 70021, 70058, 71851
Buy the 50-57-9309 MOLEX SL Crimp Housing | myMectronic
Purchase the genuine MOLEX 50-57-9309 SL Crimp Housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 50579309?
You can click on the BUY or RFQ button to purchase 50579309 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 50579309?
You can download the 50579309 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 50579309?
MOLEX
