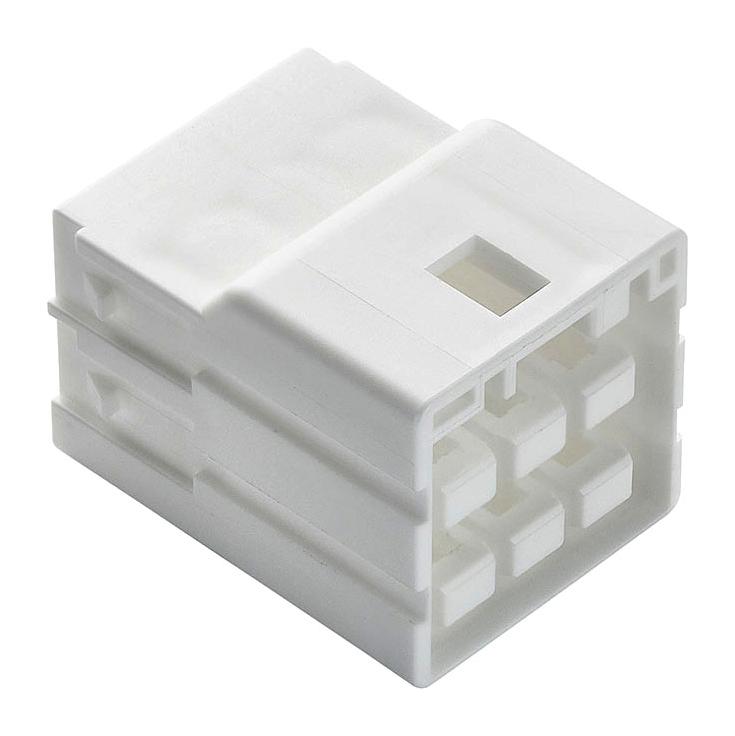

MOLEX 2069962611 Wire-to-Wire Connector
Glow-wire capable and halogen-free CP-4.5 wire-to-wire connectors feature a secure locking mechanism with fool-proof keyed, color-coded, and polarized mating for easy installation and safety. Suitable for consumer, industrial, and power applications, they come in various housing colors for quick identification. The positive-lock latch prevents incomplete mating and accidental interlocking. Made of UL94V-0 nylon in a halogen-free formulation, these connectors support up to 600V and 10A, are rated for 30 mating cycles, and operate from -40°C to +120°C, ensuring durability and safety in demanding environments.
MOLEX 2069962611 Wire-to-Wire Connector Specifications:
- Series: CP-4.5
- Maximum Circuits: 6
- Color - Resin: Natural (White)
- Gender: Receptacle
- Material - Resin: Nylon
- Net Weight: 3.090g
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 4.50mm
- Voltage Rating: 600V
- Current Rating: 2.0 to 10.0A
- Temperature Range - Operating: -40°C to +120°C
- Glow-Wire Capable: Yes
- Halogen-Free: Yes
- RoHS Compliant: Yes
- Reinforced Housing: Raised blocks prevent wire snagging
- Rated Mating Cycles: 30
- Locking Mechanism: Positive lock, fool-proof keyed, polarized
- Color Options: Wide range for easy identification
Buy the Buy Molex CP-4.5 Receptacle Housing Part Number 2069962611 Online
Purchase the Molex CP-4.5 wire-to-wire connector online and benefit from reliable, glow-wire capable connectors designed for safety and durability. These halogen-free connectors feature a secure positive lock, fool-proof keyed and polarized mating, and support up to 600V and 10A loads. Ideal for industrial, consumer, and power systems, they operate across a wide temperature range from -40°C to +120°C. With a robust nylon housing, multiple color options for easy identification, and rated for 30 mating cycles, they ensure long-lasting, safe, and efficient connections in demanding environments.
Buy Molex 2069962611 now and experience unmatched reliability and performance with secure locking features and high-temperature durability in your wiring projects.
