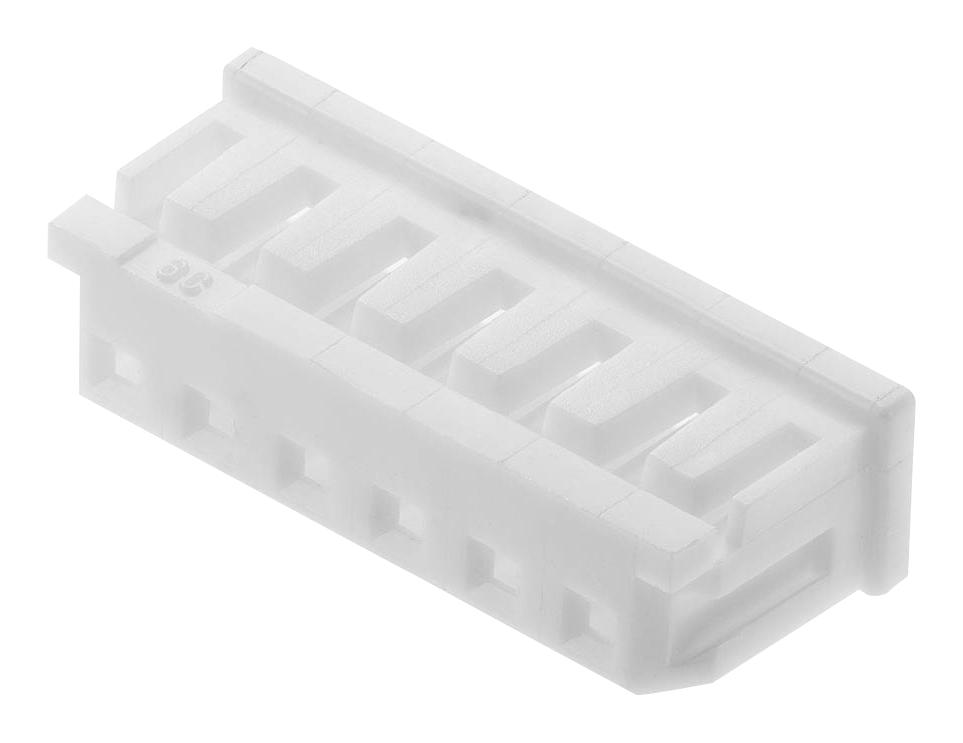

MOLEX 510651200 Micro-Latch Wire-to-Board Housing
The MOLEX 51065-1200 Micro-Latch wire-to-board housing provides a reliable connection solution for signal transmission in various industrial applications. Its 2.00mm pitch and friction lock design ensure secure and consistent mating. Constructed from polyester resin, this housing offers good insulation and durability. It is compatible with 50212 crimp terminals and mates with 53253 and 53254 PCB headers, making it a versatile choice for diverse electronic assemblies. The housing is RoHS compliant and operates within a wide temperature range, ensuring performance in demanding environments.
MOLEX 510651200 Micro-Latch Wire-to-Board Housing Specifications:
- status: Active
- pitch_mating_interface: 2.00mm
- circuits_maximum: 12
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- material_resin: Polyester
- net_weight: 297.200/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- temperature_range_operating: -40°C to +105°C
- product_family: Crimp Housings
- application: Signal, Wire-to-Board
- upc: 800753574328
- series: 51065
- mates_with: 53253 PCB Header, 53254 PCB Header
- use_with: 50212 Crimp Terminal
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Not Low-Halogen
Buy the 51065-1200 MOLEX Micro-Latch Wire-to-Board Housing | myMectronic
Purchase the genuine MOLEX 51065-1200 Micro-Latch Wire-to-Board Housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 510651200?
You can click on the BUY or RFQ button to purchase 510651200 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 510651200?
You can download the 510651200 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 510651200?
MOLEX
