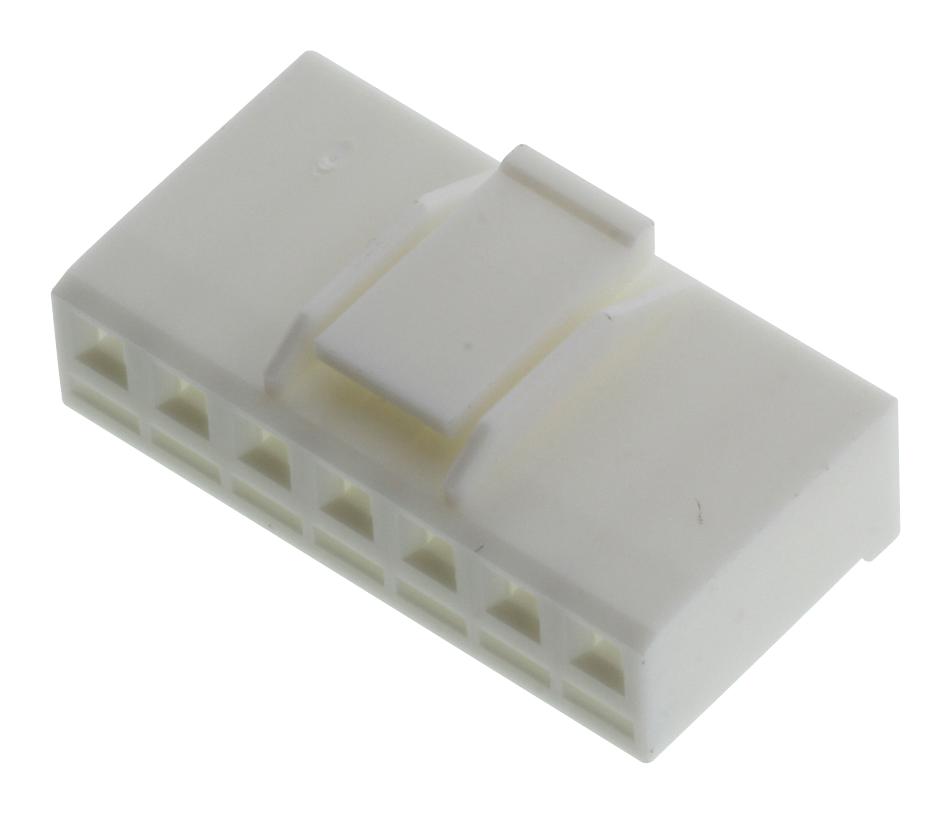

MOLEX 510670700 Mighty-SPOX Connector System
The MOLEX 51067-0700 Mighty-SPOX connector housing is a versatile solution for power and signal transmission in wire-to-wire and wire-to-board applications. Its positive lock mechanism ensures a robust and secure connection, while the 3.50mm pitch provides efficient space utilization. Constructed from polyester resin, this housing is designed for reliable performance in demanding environments. It is compatible with various crimp terminals and mates with several other connector series, making it a flexible choice for a wide range of industrial and commercial applications.
MOLEX 510670700 Mighty-SPOX Connector System Specifications:
- overview: Mighty-SPOX Connector System
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 7
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- material_resin: Polyester
- net_weight: 1423.100/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 3.50mm
- stackable: No
- temperature_range_operating: -40° to +105°C
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: 51114, 53258, 53259, 53265, 53266
- use_with: 50217
