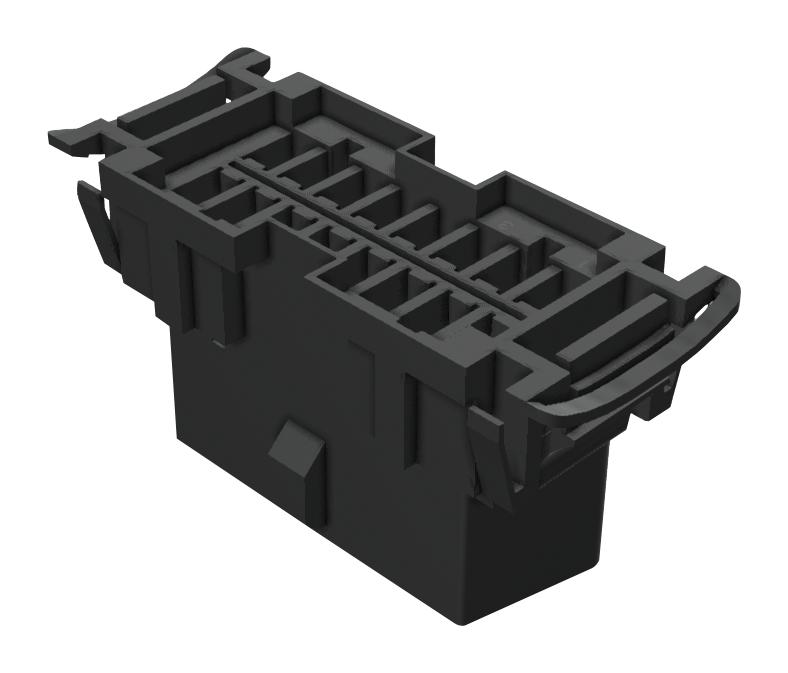

MOLEX 511151601 OBD-II Receptacle Housing
The MOLEX 51115-1601 is a receptacle housing specifically engineered for OBD-II wire-to-wire connections. This housing provides a secure and reliable connection for power transmission in automotive and industrial applications. It is designed with a 4.00mm pitch and features panel mount capability for easy integration into various systems. Constructed from durable polyester resin, the housing offers excellent resistance to environmental factors and ensures long-term performance. It is compatible with 50420 terminals and .51117 retainers, and mates with OBD-II Male Housing 685031602.
MOLEX 511151601 OBD-II Receptacle Housing Specifications:
- Circuits (maximum): 16
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 10330.000/mg
- Number of Rows: 2
- Packaging Type: Tray
- Panel Mount: Yes
- Pitch - Mating Interface: 4.00mm
- Stackable: No
- Temperature Range - Operating: -40° to +85°C
- Lead-freeProcess Capability: N/A
