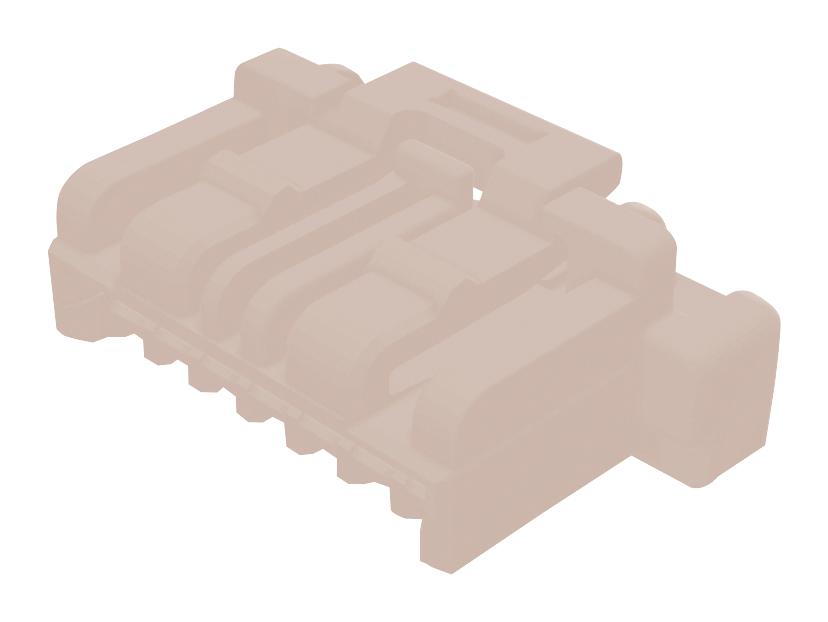

MOLEX 5025780700 Wire-to-Board Housing
The CLIK-Mate Wire-to-Board Housing is a reliable and secure connector designed for electronics applications, featuring a single row with positive lock mechanism and 7 circuits in beige color. It is UL certified, RoHS compliant, and operates within a temperature range of -40°C to +105°C, supporting up to 2A per contact. The housing is compatible with various receptacles and crimp terminals, suitable for versatile wiring solutions in industrial and consumer electronics. Its compact size and secure locking ensure durability and ease of assembly in manufacturing environments.
MOLEX 5025780700 Wire-to-Board Housing Specifications:
- Circuits (maximum): 7
- Color - Resin: Beige
- Flammability: UL 94V-0
- Gender: Plug
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Net Weight: 365.4 mg
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 1.50mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Material Info: Not specified
- Reference - Drawing Numbers: AS-502578-001-001, AS-502578-002-001, AS-503395-001-001
- Application Specification: PS-502584-001-001, PS-503159-001-001, PS-503395-001-001
- Packaging Specification: SPK-502578-001-001
- RoHS Certificate: Compliant
- Halogen-Free: No
Buy the Molex Series CLIK-Mate: Wire-to-Board Housing 5025780700
Purchase the Molex CLIK-Mate Wire-to-Board Housing 5025780700 online and ensure reliable electrical connections in your electronic assemblies. Designed with a positive lock for secure mating, this 7-circuit beige connector supports a temperature range of -40°C to +105°C and handles up to 2A per contact. Its compact size, UL certification, and RoHS compliance make it ideal for industrial, consumer, and automation applications. Shop now for fast delivery and quality assurance in your wiring and connector needs.
Order your Molex Series CLIK-Mate 5025780700 today and secure dependable, durable wiring connections for your electronic projects.
