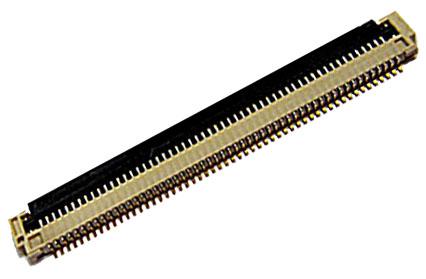

MOLEX 512964033 FFC-FPC Connector
The Molex Easy-On FFC/FPC connector features a 0.50mm pitch, right-angle surface-mount design with a 1.30mm mated height, suitable for compact electronic assemblies. It supports 40 circuits with bottom contact style, offering reliable electrical connections with a maximum current of 0.5A per contact and voltage of 50V AC/DC. Constructed with phosphor bronze contacts plated in silver or tin-bismuth, it is rated for -40°C to +85°C operation, ensuring durability and conductivity for high-density flexible circuit applications. The connector is RoHS compliant, halogen-free, and designed for a maximum of 20 mating cycles.
MOLEX 512964033 FFC-FPC Connector Specifications:
- Pitch: 0.50mm
- Number of Circuits: 40
- Height: 1.30mm
- Contact Material: Phosphor Bronze
- Contact Plating: Silver or Tin-Bismuth
- Flammability: UL 94V-0
- Temperature Range: -40°C to +85°C
- Electrical Current: 0.5A per contact
- Voltage Rating: 50V AC/DC
- Mounting Type: Surface Mount
- Actuator Type: Flip
- Durability: 20 mating cycles
- Color: Beige, Black
- Packaging: Embossed tape on reel
- RoHS, China RoHS, REACH compliant
- Halogen-Free: No
Buy the Molex Series 51296 FFC-FPC Connector: 0512964033
Purchase the Molex FFC-FPC connector online today to ensure high reliability and easy installation in your electronic projects. Featuring a 0.50mm pitch, right-angle surface-mount design, and capacity for 40 circuits, this connector is ideal for space-constrained devices. RoHS compliant and rated for -40°C to +85°C, it offers excellent performance and durability for flexible circuit connections. Reliable contacts, a maximum current of 0.5A, and a 20 mating cycle life make this product perfect for precise electronic assembly requirements. Order now for quick delivery and seamless integration.
Get Molex 0512964033 today—built for precision and long-lasting durability in compact electronic circuits.
Frequently Asked Questions
Where can I buy MOLEX 512964033?
You can click on the BUY or RFQ button to purchase 512964033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 512964033?
You can download the 512964033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 512964033?
MOLEX
