MOLEX 513389873 Board-to-Board Connector
The SlimStack 0.40mm pitch board-to-board connector is designed for space-saving applications. It features dual rows, surface mounting, and vertical stacking options with 1.50mm or 2.00mm height, incorporating space-efficient J-Bend leads. Suitable for signal transmission, it supports up to 0.3A current and 50V AC/DC voltage, with a durable design rated for 30 mating cycles. Constructed from phosphor bronze with gold plating, this connector offers reliable performance in electronic modules, consumer electronics, and industrial systems requiring compact, high-density connections.
MOLEX 513389873 Board-to-Board Connector Specifications:
- Pitch: 0.40mm
- Number of Circuits: 10
- Maximum Circuits: 10
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin over Nickel
- Color - Resin: Black
- Mated Height: 1.50mm or 2.00mm
- Mated Width: 3.40mm
- Durability: 30 mating cycles
- Current - Maximum per Contact: 0.3A
- Voltage - Maximum: 50V AC/DC
- Operating Temperature Range: -25°C to +85°C
- Surface Mount Compatibility: Yes
- Assembly Type: Embossed Tape on Reel
- Lock to Mating Part: No
- Polarization: Yes
- RoHS Compliant: Yes
- Halogen-Free: Yes

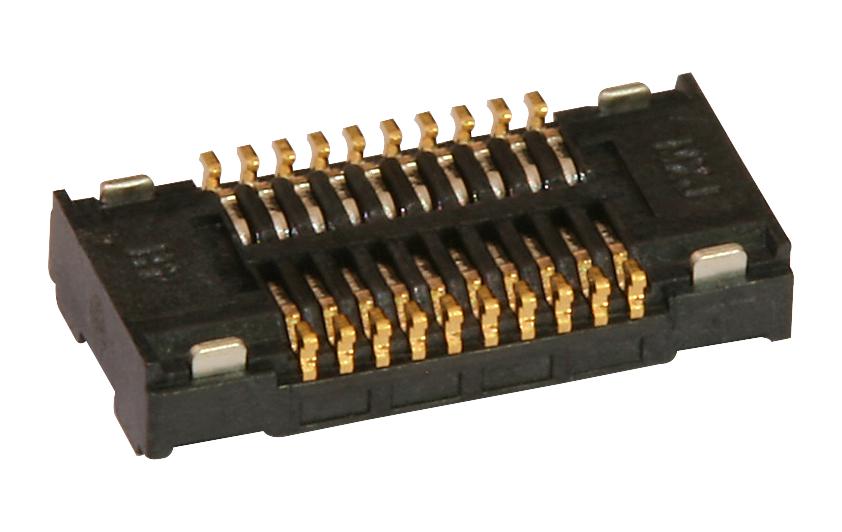

Buy the Buy Molex SlimStack Board-to-Board Connectors Part Number 0513389873 Online
Enhance your electronic assemblies with the Molex SlimStack Board-to-Board Connector. This compact, space-efficient connector features a 0.40mm pitch, dual-row design, and surface mount compatibility, making it ideal for high-density applications. With gold-plated contacts, it delivers excellent conductivity and durability for up to 30 mating cycles. Rated for -25°C to +85°C, it supports 0.3A and 50V DC, ensuring reliable performance in consumer electronics, industrial equipment, and communication devices. Buy online now for quality and space-saving solutions.
Order your Molex SlimStack connector with part number 0513389873 today and ensure reliable, space-saving connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 513389873?
You can click on the BUY or RFQ button to purchase 513389873 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 513389873?
You can download the 513389873 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 513389873?
MOLEX
