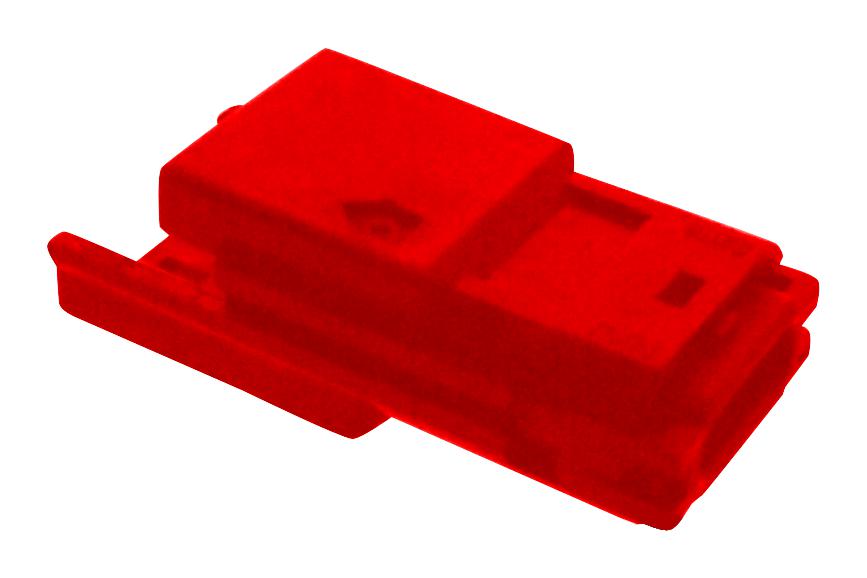

MOLEX 521160242 Mizu-P25 Waterproof Connector
The MOLEX 52116-0242 is a Mizu-P25 miniature waterproof wire-to-wire plug housing designed for signal applications. This connector offers a robust and reliable solution for wire-to-wire connections in various industrial environments. It features a 5.00mm pitch, 2 circuits, and a red resin color, providing both functionality and visual identification. The connector's waterproof design ensures protection against moisture and environmental factors, making it suitable for demanding applications. It also includes a lock to mating parts for added security and reliability.
MOLEX 521160242 Mizu-P25 Waterproof Connector Specifications:
- product_family: Crimp Housings
- series: 52116
- application: Signal, Wire-to-Wire
- application_tooling_part_link: 62202-4400
- upc: 800754368513
- circuits_maximum: 2
- color_resin: Red
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Polyester
- net_weight: 1543.500/mg
- number_of_rows: 1
- packaging_type: Tray
- panel_mount: No
- pitch_mating_interface: 5.00mm
- stackable: No
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 3.0A
- lead_free_process_capability: N/A
- mates_with: 52117 Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing
- use_with: 50038 Mizu-P25 Crimp Terminal
- application_specification_1: AS-52117-001-001
- application_specification_2: AS-52117-001-JP-001
- packaging_specification: 521160000-P00
- rohs_certificate_of_compliance: Available
- product_specification: PS-52116-001-001
- sales_drawing: SD-52116-001-001
- elv_compliant: Yes
- china_rohS: Compliant
- reach_svhc_contained: N,Ndimethylacetamide
- halogen_free_status: Not Low-Halogen
