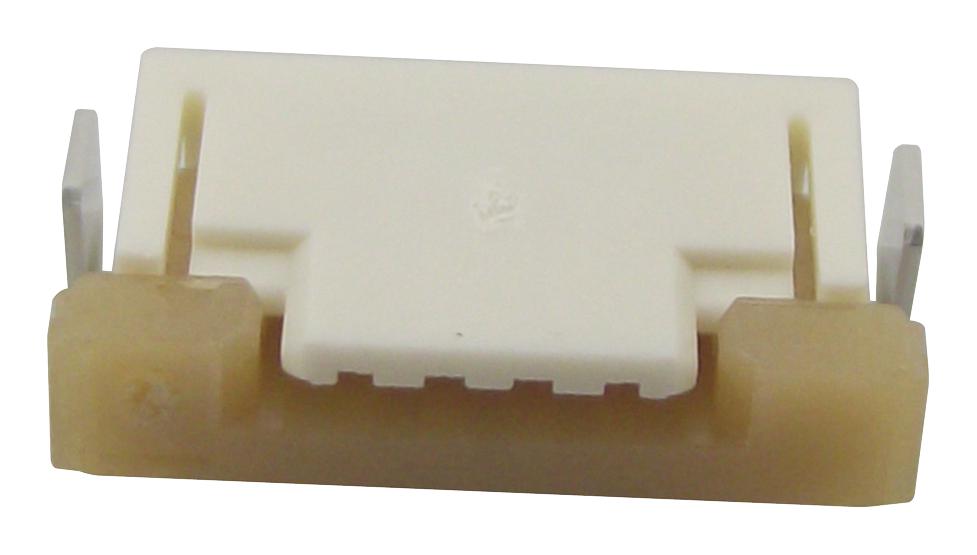

MOLEX 522071160 Easy-On FFC/FPC Connector
The MOLEX 52207-1160 is a versatile Easy-On FFC/FPC connector within the 52207 series. Designed for SMT applications, it offers a right-angle orientation and top contact configuration, making it suitable for a wide range of electronic devices. The gold plating on the contacts ensures excellent signal integrity and durability. With a pitch of 1.00mm and 11 circuits, this connector provides a compact and efficient solution for connecting flexible flat cables to printed circuit boards. It is commonly used in consumer electronics, industrial equipment, and automotive applications where reliable FFC/FPC connectivity is essential.
MOLEX 522071160 Easy-On FFC/FPC Connector Specifications:
- overview: FFC-FPC (SMT)
- pitch_mating: 1.00mm
- pitch_termination: 1.00mm
- circuits_loaded: 11
- mated_height: 2.70mm
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 1
- orientation: Right Angle
- pcb_tail_length: 2.00mm
- temperature_range_operating: -30° to +85°C
- current_max_per_contact: 1.0A
- voltage_max: 125V
- durability_mating_cycles_max: 30
- flammability: 94V-0
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- pcb_retention: Yes
- polarized_to_pcb: Yes
- stackable: No
- packaging_type: Embossed Tape on Reel
- net_weight: 458.122/mg
