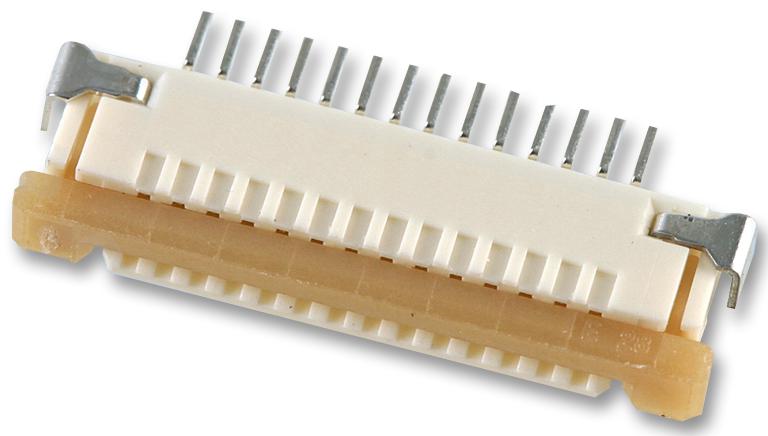

MOLEX 522072633 Easy-On Slider FFC/FPC Connector
The MOLEX 52207-2633 is a versatile FFC/FPC connector within the 52207 series, engineered for reliable connections in a variety of electronic devices. Its Easy-On design simplifies assembly, while the slider mechanism ensures secure mating. Constructed with phosphor bronze contacts and a nylon resin housing, this connector offers durability and excellent electrical performance. It is commonly used in consumer electronics, industrial equipment, and automotive applications where flexible circuit connections are required.
MOLEX 522072633 Easy-On Slider FFC/FPC Connector Specifications:
- series_overview: FFC/FPC Connectors
- product_name: Easy-On Slider
- upc: 887191278094
- actuator_type: Slider
- circuits_loaded: 26
- color_resin: Natural
- contact_position: Top
- durability_mating_cycles_max: 30
- flammability: 94V-0
- mated_height: 2.70mm
- material_metal: Phosphor Bronze
- material_plating_contact: Silver, Tin-Bismuth
- material_plating_termination: Silver, Tin-Bismuth
- material_resin: Nylon
- net_weight: 902.200/mg
- number_of_rows: 1
- orientation: Right Angle
- pcb_tail_length: 2.00mm
- pcb_locator: No
- pcb_mounting: Surface Mount
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 1.00mm
- pitch_termination_interface: 1.00mm
- polarized_to_pcb: Yes
- stackable: No
- temperature_range_operating: -40° to +85°C
- wire_cable_type: FFC/FPC
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- agency_certification: CSA UL
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
