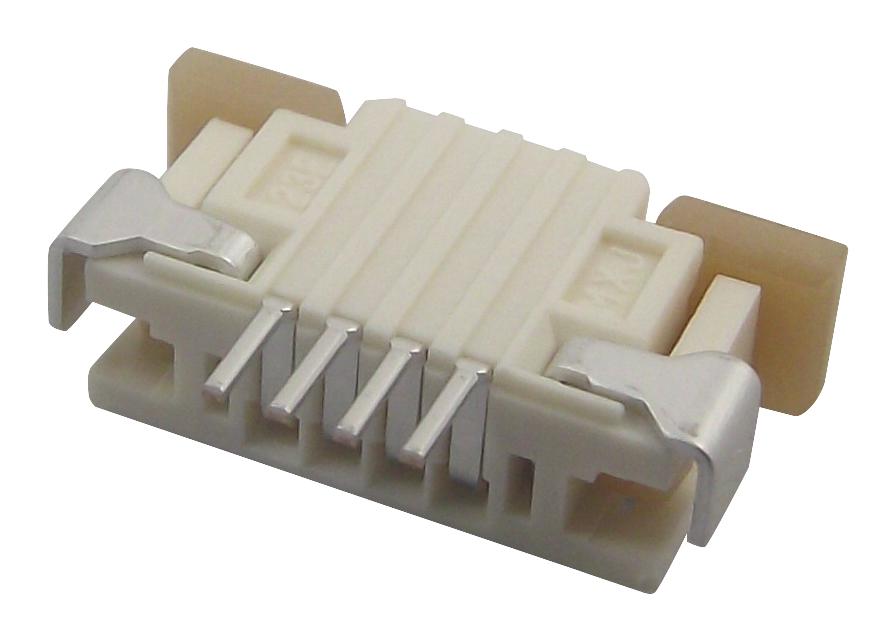

MOLEX 522710579 FFC-FPC Connector
This Easy-On FFC-FPC Connector features a 1.00mm pitch, right-angle bottom contact, and a slider series design suitable for SMT mounting. It accommodates 5 circuits, made from phosphor bronze with tin-bismuth plating for reliability. Designed for easy FFC/FPC connections, it supports a temperature range of -40°C to +85°C and offers a maximum current of 0.5A per contact with a maximum voltage of 50V AC/DC. The connector’s compact form, 3.00mm mated height, and surface-mount setup make it ideal for electronics requiring secure, low-profile interconnections.
MOLEX 522710579 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits (Loaded): 5
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Nylon
- Contact Position: Bottom
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Mated Height: 3.00mm
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Packaging Type: Embossed Tape on Reel
- Orientation: Right Angle
- PCB Mounting: Surface Mount
- Color - Resin: Natural
- Net Weight: 318.720 mg
Buy the Buy Molex FFC-FPC Connector Part Number 522710579 Online
Purchase the Molex FFC-FPC Connector online for efficient, reliable electronic connections. With a 1mm pitch, right-angle bottom contact, and tin-bismuth plating, it ensures durability and excellent electrical performance. Designed for surface-mount applications, it supports 5 circuits within a compact 3.00mm height, suitable for space-constrained assemblies. Its UL and CSA certifications guarantee safety and quality, making it an ideal choice for modern electronics requiring secure, easy-to-mate flexible flat cable connections with reliable long-term performance.
Buy Molex 522710579 now and experience unmatched reliability and performance with its easy-to-mate, space-efficient design for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 522710579?
You can click on the BUY or RFQ button to purchase 522710579 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522710579?
You can download the 522710579 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522710579?
MOLEX
