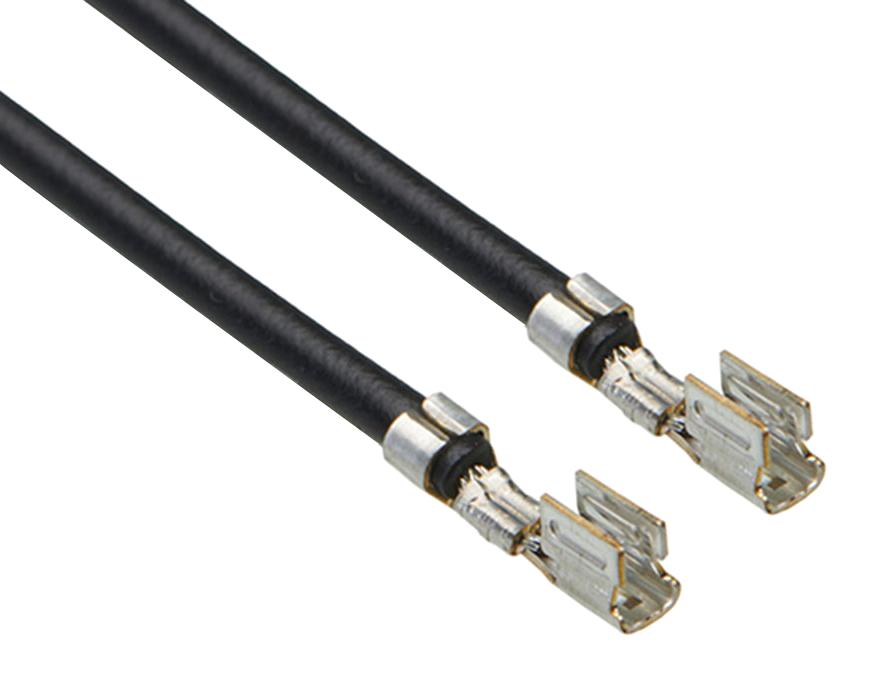

MOLEX 2175101121 L1NK 250 Cable Assembly
The MOLEX 217510-1121 is a pre-crimped lead cable assembly within the L1NK 250 series. This assembly provides a convenient, pre-terminated connection solution for L1NK 250 connectors, eliminating the need for on-site crimping. The female-to-female configuration and tin plating ensure reliable electrical contact. Commonly used in industrial automation, consumer electronics, and automotive applications where a pre-configured connection is required.
Authorized Distributors
Source:Mouser Electronics
Part No:217510-1121
Stock:0
Inv Date:05-30-2026
Price: Unit price: $0.579
Buy/RFQ:
Source:RS Americas, Inc
Part No:217510-1121
Stock:0
Inv Date:05-29-2026
Price: Unit price: $0.59
Buy/RFQ:
MOLEX 2175101121 L1NK 250 Cable Assembly Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 217510
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250
- circuit_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 0.570/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119406
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- use_with: L1NK 250 Receptacle Housing 207841
- sales_drawing: 2175102121-000
