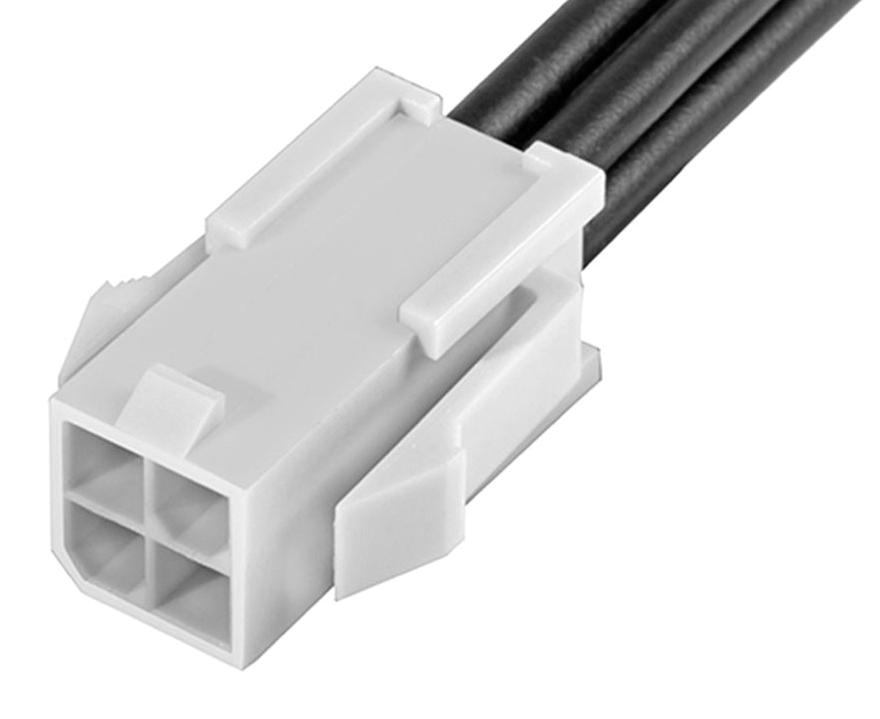

MOLEX 2153252041 Mini-Fit Jr. Cable Assembly
The MOLEX 2153252041 is a Mini-Fit Jr. female-to-female off-the-shelf (OTS) cable assembly designed for power applications. This assembly provides a robust and reliable connection between two Mini-Fit Jr. connectors, making it suitable for wire-to-board and wire-to-wire configurations. The dual-row design accommodates multiple circuits, and the gold plating ensures excellent conductivity and corrosion resistance. It is commonly used in industrial equipment, automotive systems, and consumer electronics where a secure and efficient power connection is required.
MOLEX 2153252041 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 4
- color_resin: Black
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 17.645/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264589821
- series: 215325 Series
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153252041-000
Buy the 2153252041 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 2153252041 cable assembly securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153252041?
You can click on the BUY or RFQ button to purchase 2153252041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153252041?
You can download the 2153252041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153252041?
MOLEX
