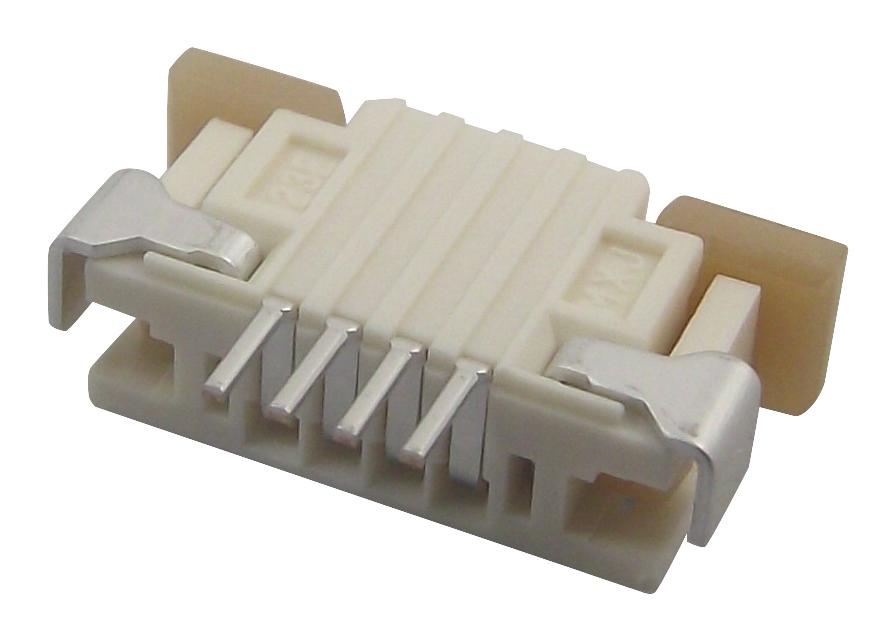

MOLEX 522711869 FFC/FPC Connector
The Molex Easy-On FFC/FPC Connector features a 1.00mm pitch, right-angle bottom contact design, and supports 18 circuits with durable gold plating. Designed for high reliability, it is suitable for SMT applications with a maximum operating temperature of -40°C to +85°C. Made from nylon with phosphor bronze contacts, it offers a 0.5A current capacity and 50V AC/DC voltage rating. Its compact, stackable design ensures efficient space utilization in electronic assemblies, making it ideal for flexible flat cable (FFC) and flexible printed circuit (FPC) connections in industrial and consumer electronics.
MOLEX 522711869 FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits: 18
- Mated Height: 3.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Contact Position: Bottom
- Orientation: Right-Angle
- Surface Mount: Yes
- PCB Mounting: Yes
- Durability (Mating Cycles Max): 30
- Flammability: 94V-0
- Packaging: Embossed Tape on Reel
Buy the Molex 0522711869 – Reliable FFC/FPC Connector for Industrial Applications
Secure your electronic projects with the Molex FFC/FPC Connector featuring a 1.00mm pitch and 18 circuits, crafted from durable nylon with gold-plated contacts. Designed for surface mount applications, it ensures reliable signal integrity and long-term durability. Its right-angle, bottom contact orientation allows for efficient space utilization in complex electronic assemblies. Capable of withstanding temperatures from -40°C to +85°C, supporting up to 0.5A current and 50V voltage, this connector is essential for industrial, automotive, and consumer electronic devices requiring secure, flexible connections.
Buy Molex 0522711869 now and experience unmatched reliability and performance for flexible circuit connections in industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 522711869?
You can click on the BUY or RFQ button to purchase 522711869 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522711869?
You can download the 522711869 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522711869?
MOLEX
