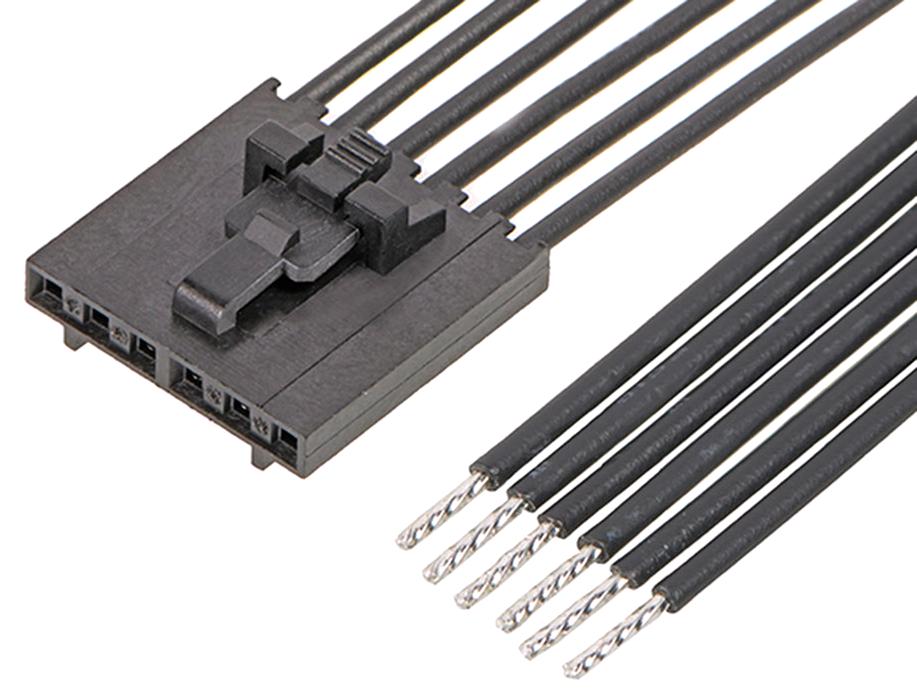

MOLEX 2162711082 discrete cable assembly
This versatile off-the-shelf linear positive lock discrete cable assembly supports prototyping and production with multiple termination styles, including crimp, FFC, and IDT. Designed for high electrical reliability, it incorporates dual contact points for redundant current paths. The connector features a secure position assurance lock ideal for high-vibration environments, ensuring stable wire-to-wire and wire-to-board connections in industrial, automotive, medical, and networking applications. Made with durable polyester alloy housing and tin-plated phosphor bronze contacts, it operates between -40°C and +105°C and handles up to 600V and 3A for various demanding environments.
MOLEX 2162711082 discrete cable assembly Specifications:
- Cable Length: 150.00mm
- Circuits (Loaded): 8
- Color - Resin: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating and Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 7.085 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Certifications: UL 11028, RoHS, China RoHS, REACH SVHC compliant
- Durability: Up to 25 mating cycles
Buy the Molex 216271– Reliable Discrete Cable Assembly for Industrial Applications
Enhance your projects with Molex’s reliable discrete cable assembly designed for industrial, automotive, and medical electronics. Featuring a positive lock to ensure secure connections, it supports multiple termination styles such as crimp, FFC, and IDT. Built with durable materials like tin-plated phosphor bronze and a polyester alloy housing, it operates efficiently from -40°C to +105°C, rated up to 600V and 3A. Whether for prototyping or production, this assembly provides robust performance with up to 25 mating cycles, ideal for demanding environments.
Order your Molex Series 216271 cable assembly today and ensure secure, reliable connections in industrial, automotive, or medical projects.
