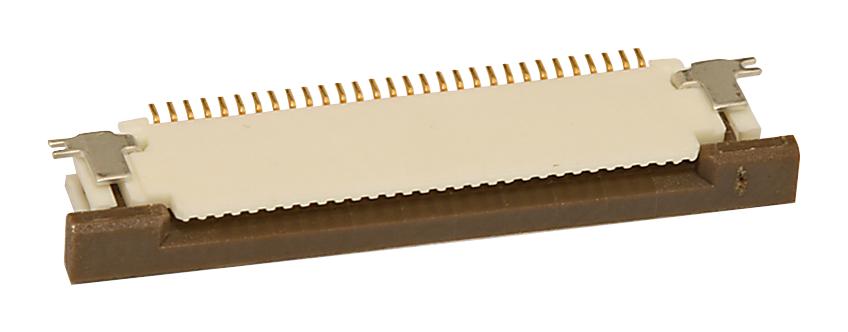

MOLEX 524372433 FFC/FPC Connector
The Easy-On FFC/FPC Connector with a 0.50mm pitch from Molex's Slider Series offers reliable right-angle, bottom contact connections with 24 circuits. Designed for surface mounting, it features tin-silver-bismuth plating, a 2.00mm height, and accommodates FFC/FPC cables up to 0.50mm thick. Suitable for various electronic assemblies, it supports durability of up to 20 mating cycles, operates within -40°C to +85°C, and complies with RoHS and UL standards. Ideal for compact, high-density PCB applications requiring secure and easy connection access.
MOLEX 524372433 FFC/FPC Connector Specifications:
- Pitch: 0.50mm
- Number of Circuits: 24
- Height: 2.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Bismuth, Silver
- Material - Plating Termination: Tin-Bismuth, Silver
- Material - Resin: Nylon
- Durability: 20 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V
- Surface Mount Compatible: Yes
- Flammability: UL 94V-0
Buy the Molex Series Slider FFC FPC Connector: 52437
Purchase the Molex FFC/FPC Connector from the Slider Series today for high-quality, easy-to-attach connections tailored for space-constrained electronic projects. Featuring a 0.50mm pitch, right-angle mounting, and durable tin-silver-bismuth plating, this connector ensures secure contact and long-lasting performance. Ideal for PCB assemblies needing reliable, quick mating cycles up to 20 times, and suitable for operating temperatures from -40°C to +85°C. Order now to enhance your electronic device’s connectivity with this precision component.
Get Molex 52437 today—built for precise, reliable electronic connections in compact designs.
