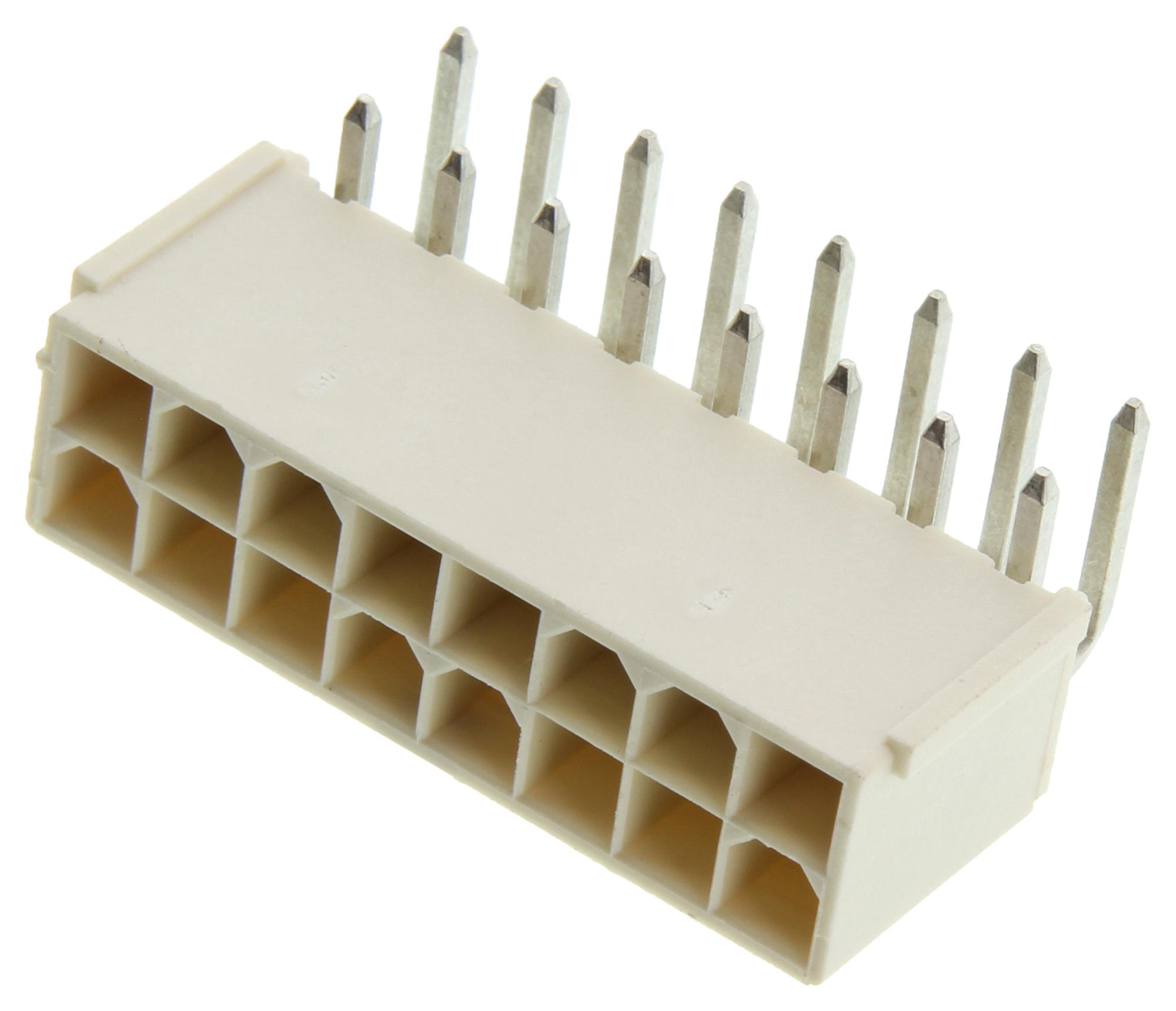

MOLEX 874271602 Power Connector
The Mini-Fit Jr. Power Connectors are high-current, reliable power headers with a 4.20mm pitch, designed for wire-to-board applications. Made with durable nylon and featuring tin-plated brass contacts, these right-angle connectors support up to 13A per circuit at 600V. Suitable for PCB mounting, they are polarized, shrouded fully for safety, and have a maximum operating temperature of +105°C. These connectors are RoHS compliant, Halogen-Free, and engineered for rugged industrial environments, ensuring stable power connections in various electronic systems.
MOLEX 874271602 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 16
- Color - Resin: Beige
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Max Current per Circuit: 13A
- Voltage Rating: 600V
- Temperature Range: -40°C to +105°C
- Durability: 30 mating cycles
- Flammability: UL 94V-0
- Polarization: Yes
- Lock to Mating Part: Yes
- Surface Mount Compatible: No
- PCB Thickness - Recommended: 1.60mm
- Press Fit: No
- Solder Process: Wave, Max Temperature 260°C for 5 seconds
- Packaging: Tray
Buy the Molex 874271602 – Reliable Power Connectors for Industrial Applications
Secure your electronic projects with Molex 874271602 Power Connectors, featuring a 4.20mm pitch, 13A current capacity, and durable nylon housing. These right-angle, tin-plated brass contacts ensure reliable high-current connections up to 600V, suitable for demanding industrial and electronic systems. RoHS and UL compliant, they support up to 30 mating cycles and operate smoothly in temperatures from -40°C to +105°C. Easy to install and designed for durability, these connectors are essential for robust wire-to-board power applications.
Buy Molex 874271602 now and experience unmatched reliability and performance in your power connection projects, ideal for high-current industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 874271602?
You can click on the BUY or RFQ button to purchase 874271602 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 874271602?
You can download the 874271602 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 874271602?
MOLEX
