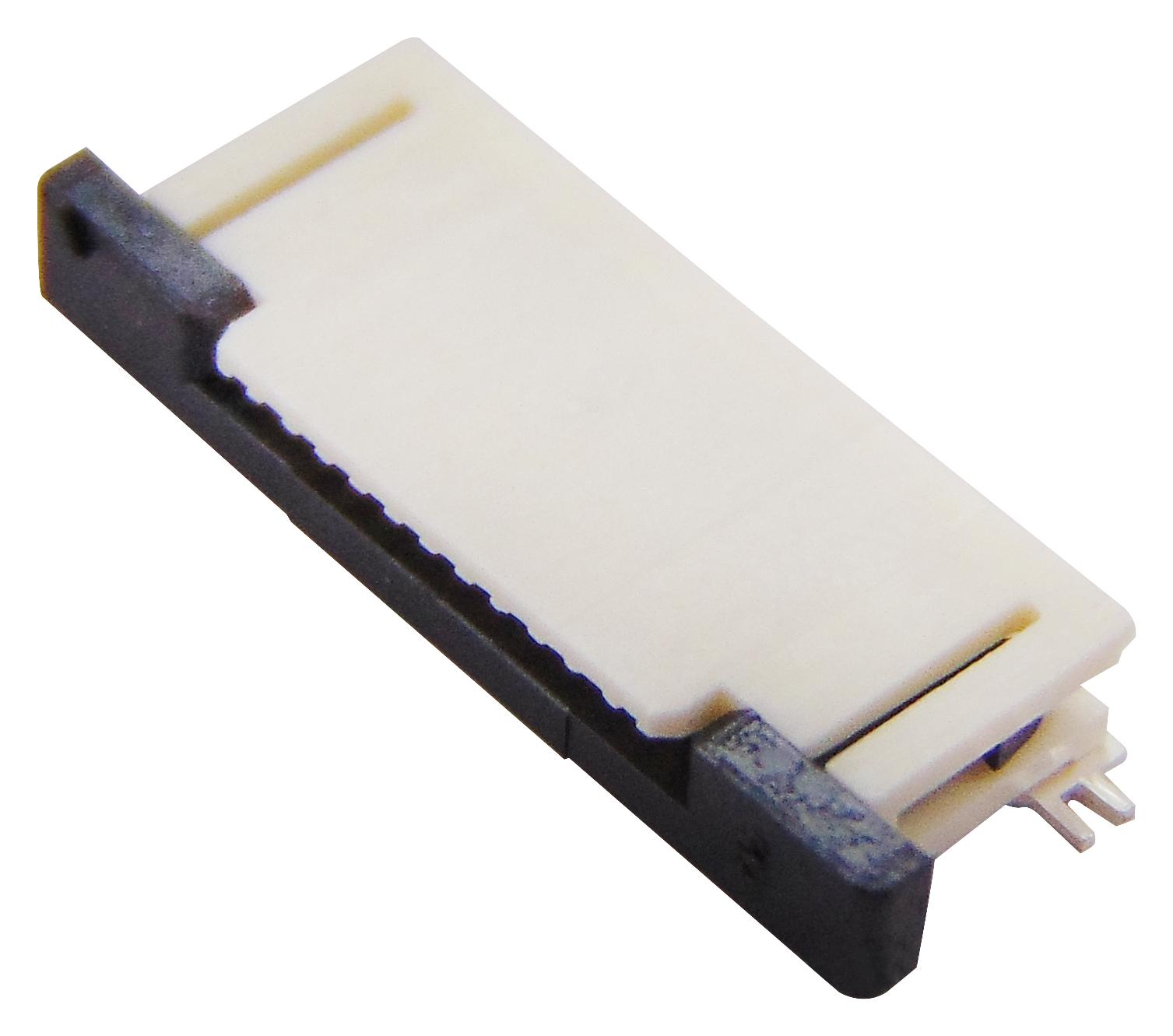

MOLEX 527450833 FFC-FPC Connector
The Easy-On FFC-FPC Connector with a 0.50mm pitch is designed for flexible flat cables and flexible printed circuits, featuring a right-angle, top contact slider mechanism. It supports 8 circuits, has a mated height of 2.00mm, and is made from durable phosphor bronze with silver and tin-bismuth plating. Suitable for SMT mounting, it offers high reliability with 20 mating cycles, operating in a temperature range of -40°C to +85°C. Its RoHS compliant, halogen-free, and UL certified for safe and efficient electrical connectivity.
MOLEX 527450833 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 8
- Mated Height: 2.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Silver, Tin-Bismuth
- Material - Plating Termination: Tin-Silver-Bismuth
- Material - Resin: Nylon
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V
- Durability (mating cycles max): 20
- Flammability: 94V-0
- Assembly: Surface Mount, Embossed Tape on Reel
- Color - Resin: Black or White
- PCB Mounting: Yes, Right-Angle Mount
- Certifications: UL, RoHS, China RoHS
Buy the Molex Series Easy-On FFC-FPC Connector: 0527450833
Secure your electronic assembly with the Molex FFC-FPC connector featuring 8 circuits, 0.50mm pitch, and right-angle SMT design. Perfect for flexible circuits, it is RoHS compliant, UL certified, and constructed from durable materials with silver and tin-bismuth plating for corrosion resistance. The connector offers a mating height of 2.00mm, supports 20 mating cycles, and operates efficiently in temperatures from -40°C to +85°C. Ideal for manufacturing and repair, it ensures reliable, compact, and safe electrical connections.
Buy Molex 0527450833 now and experience unmatched reliability and high-quality flexible circuit connections for your electronics projects.
