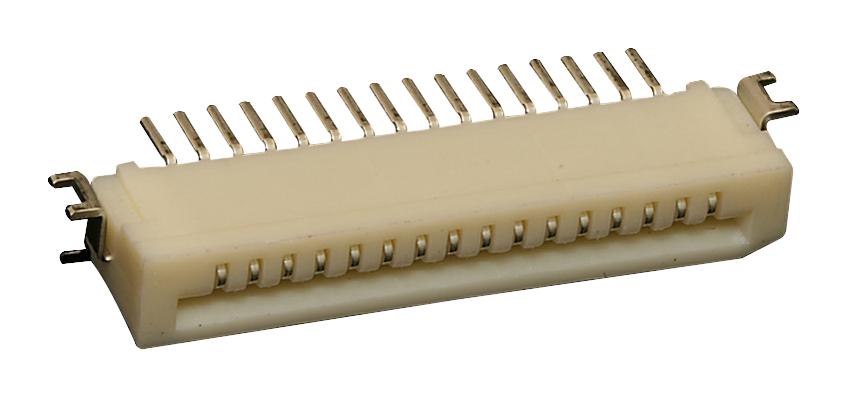

MOLEX 528520670 FFC-FPC Connector
The 1.00mm Pitch Easy-On FFC-FPC Connector is a surface mount, right-angle, non-ZIF connector designed for flexible flat cable and flexible printed circuit applications. It features a bottom contact style, accommodates 6 circuits, and is made with phosphor bronze metal with tin-bismuth plating for reliable electrical connections. Certified by CSA and UL, this connector supports up to 0.5A current and 50V AC/DC voltage, operating in a temperature range of -20°C to +80°C. Its compact design ensures easy surface mounting and high durability for various electronic assemblies.
MOLEX 528520670 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits: 6
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Maximum Current per Contact: 0.5A
- Maximum Voltage: 50V AC/DC
- Operating Temperature Range: -20°C to +80°C
- Contact Style: Bottom contact
- Mated Height: 3.10mm
- Durability: 10 mating cycles
- Flammability: UL 94V-0
- Surface Mount Compatible: Yes
- PCB Mounting: Surface Mount
- Packaging: Embossed Tape on Reel
- Configuration: Right-Angle, Non-ZIF
- RoHS Compliant, Halogen-Free
- Agency Certification: CSA, UL
Buy the Buy Molex FFC-FPC Connector Part Number 528520670 Online
Purchase the Molex FFC-FPC Connector 528520670 today for high-quality, surface-mount connectivity solutions. Designed for flexible flat cables and printed circuits, this 6-circuit, non-ZIF connector offers easy installation, RoHS compliance, and UL certification. Its durable phosphor bronze contacts with tin-bismuth plating ensure reliable electrical performance across a temperature range of -20°C to +80°C. Ideal for compact electronic assemblies needing dependable, high-quality connections in a space-saving form factor. Order online now for fast delivery and expert support.
Buy Molex 528520670 now and experience reliable, easy-on surface mount connectivity for compact electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 528520670?
You can click on the BUY or RFQ button to purchase 528520670 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 528520670?
You can download the 528520670 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 528520670?
MOLEX
