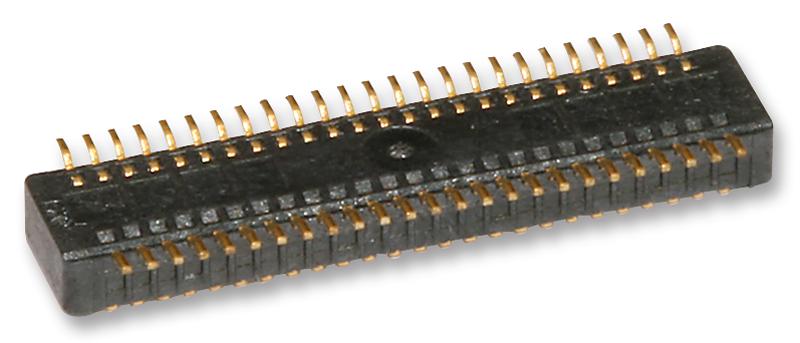

MOLEX 538850408 Board-to-Board Connector
The SlimStack 0.50mm pitch board-to-board connector features a dual-row, surface-mount design with a 2.50mm stack height and 40 circuits. Made from brass with gold plating, it offers high durability suitable for applications requiring reliable electrical connections. The connector supports up to 0.5A current at 50V, operates within a temperature range of -40°C to +105°C, and is RoHS and REACH compliant. Its compact, vertical orientation makes it ideal for densely populated electronic assemblies requiring secure, efficient signal transmission.
MOLEX 538850408 Board-to-Board Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Circuits (Loaded): 40
- Maximum Circuits: Not specified
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Mated Height: 2.50mm
- Mated Width: 5.30mm
- Terminator: Surface Mount
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V
- Net Weight: Not specified
- Number of Rows: 2
- Guide to Mating Part: 54102 SlimStack Receptacle
- Packaging Type: Embossed Tape on Reel
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
- Halogen-Free: Yes
Buy the Buy Molex SlimStack Connector Part Number 538850408 Online
Secure your electronic designs today by purchasing the Molex SlimStack connector online. This high-quality, 0.50mm pitch board-to-board connector offers 40 circuits, gold plating, and robust performance within a compact footprint. Suitable for densely packed assemblies, it ensures reliable connections with up to 0.5A current and operates in harsh environments from -40°C to +105°C. Fast, easy to order, and supported by extensive specifications, this connector is ideal for professional electronics manufacturing and hobby projects alike.
Order your Molex Series53885 538850408 today and enhance your electronic projects with reliable and space-efficient connectors.
Frequently Asked Questions
Where can I buy MOLEX 538850408?
You can click on the BUY or RFQ button to purchase 538850408 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 538850408?
You can download the 538850408 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 538850408?
MOLEX
