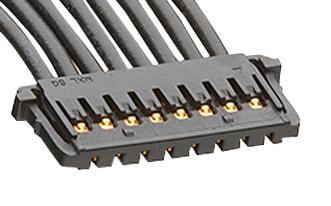

MOLEX 151320805 Pico-Lock Cable Assembly
The Pico-Lock cable assembly features a 1.50mm pitch, single-row design with 8 circuits, 450mm length, and a black high-temperature thermoplastic resin housing. This assembly employs copper alloy contacts with gold plating for reliable electrical performance and tin termination for secure crimp or compression connections. Rated for a maximum voltage of 150V, it is suitable for low-voltage, high-reliability applications like wire-to-board connections. Its halogen-free and RoHS compliant construction make it an environmentally friendly choice for industrial electronics. The assembly's compact design ensures efficient use in space-constrained devices.
MOLEX 151320805 Pico-Lock Cable Assembly Specifications:
- Pitch - Mating Interface: 1.50mm
- Number of Circuits: 8
- Cable Length: 450.00mm
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Wire Insulation Diameter: 1.10mm
- Wire Size: AWG 24
- Voltage - Maximum: 150V
- Termination Interface: Crimp or Compression
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Net Weight: 12.163 grams
Buy the Molex 0151320805 – Reliable Pico-Lock for Industrial Applications
Enhance your electronic assemblies with the Molex Pico-Lock cable assembly featuring an accurate 1.50mm pitch, 8 circuits, and a 450mm length. Crafted from high-temperature thermoplastic with copper alloy contacts, this halogen-free, RoHS-compliant cable offers reliable performance and easy crimp or compression termination. Suitable for sensitive industrial electronics, its compact design ensures space efficiency without compromising durability. Order online now to receive a trusted, environmentally friendly connector solution that meets industry standards and keeps your projects running smoothly.
Order your Molex 0151320805 Pico-Lock cable assembly today and ensure secure, high-quality wire-to-board connections for your industrial projects.
