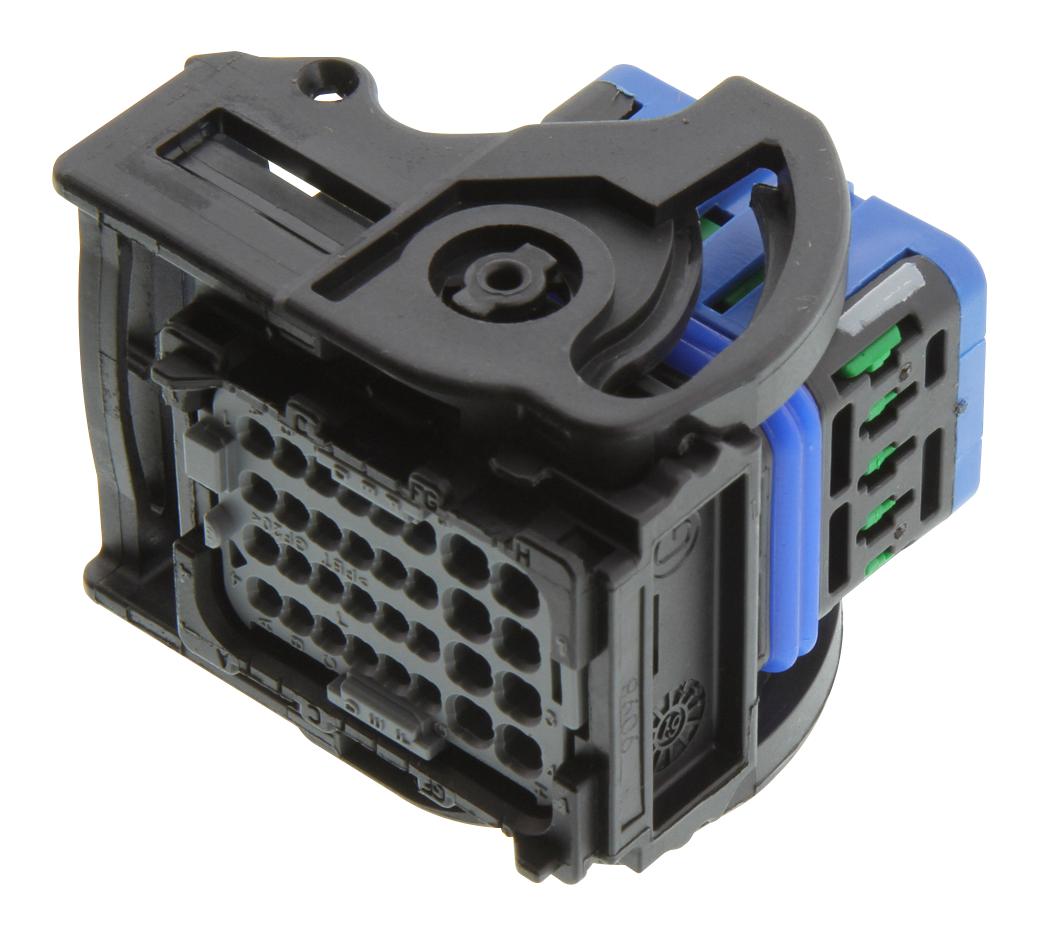

MOLEX 643191216 Automotive Power Connector
The Molex CMC and CMX Sealed, Hybrid, Modular Connectors are high-density, sealed systems designed for power train and body electronics in automotive applications. These connectors feature 32 circuits with left wire output, blue coding, and a 1.50mm pitch, ensuring secure, corrosion-resistant connections. The units operate from -40°C to +125°C and support maximum currents of 12.0A at 1.50mm terminals and 6.0A at 0.635mm terminals. They meet RoHS and UL standards, offering reliable performance for harsh environments in vehicles, trucks, and busses.
MOLEX 643191216 Automotive Power Connector Specifications:
- Number of Circuits: 32
- Pitch: 2.54mm, 3.70mm
- Color - Resin: Blue
- Material - Resin: Polyester
- Maximum Current: 12.0A for 1.50mm terminals, 6.0A for 0.635mm terminals
- Operating Temperature Range: -40°C to +125°C
- Sealed, high-density, modular design for automotive powertrain and electronics
- RoHS and UL Compliant, Low-Halogen, EU ELV Compliant
- Net Weight: 29.426 grams per unit
- Packaging: Carton, suitable for panel mounting, with locking features
- Gender: Receptacle, no
- Locking: Yes, keying to mating part
Buy the Molex Series CMC 32 Circuit Sealed Connectors: 643191216
Purchase the Molex automotive power connector 643191216 online today for secure and durable electrical connections. Designed for high-density, sealed applications in vehicles, trucks, and buses, this connector supports up to 12A current per contact with a 1.50mm pitch and operates reliably from -40°C to +125°C. Its modular design ensures easy installation and maintenance, making it perfect for powertrain and body electronics. Enjoy quick online access to this essential component for your automotive electrical system needs, ensuring robust performance and compliance with industry standards.
Get Molex 643191216 today—built for automotive powertrain and electronics with reliable sealing and high-density modular design.
Frequently Asked Questions
Where can I buy MOLEX 643191216?
You can click on the BUY or RFQ button to purchase 643191216 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 643191216?
You can download the 643191216 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 643191216?
MOLEX
