MOLEX 923151232 Ribbon Cable Assembly
This Picoflex ribbon cable assembly offers versatile lengths and configurations, ideal for early-stage development and prototyping. The polarized connector prevents mis-mating, while the one-piece housing ensures secure retention and easy inventory management. Dual-beam contacts provide four points of contact for reliable connections. Features include final seat slots acting as locks, inspection windows, optional gold plating for durability, UL and CSA certification, insulation displacement termination for daisy chaining, ejection tooling slots for disconnection, and a scalloped profile for precise positioning. Made of polyester with phosphor bronze contacts and tin plating, it supports 250V, 1.2A, operates from -40°C to +105°C, and is compatible with Picoflex PF-50 headers, making it suitable for electronics, automation, medical, and energy applications.
MOLEX 923151232 Ribbon Cable Assembly Specifications:
- Cable Length: 320.00mm
- Circuits: 12
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 1.794 g
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 1.27mm
- Wire Size AWG: 28
- Wire/Cable Type: PVC, Ribbon Cable
- Current - Maximum per Contact: 1.2A
- Voltage - Maximum: 250V
- Temperature Range: -40°C to +105°C
- Durability: 30 mating cycles
- Plating Min - Mating & Termination: 2.032μm
- Locking: Final seat slots, pull ejection tooling slots
- Housing: Polyester
- Contacts: Phosphor bronze, gold or tin plated
- Compatibility: Picoflex PF-50 headers
- Application: Electronics, industrial automation, medical, energy systems

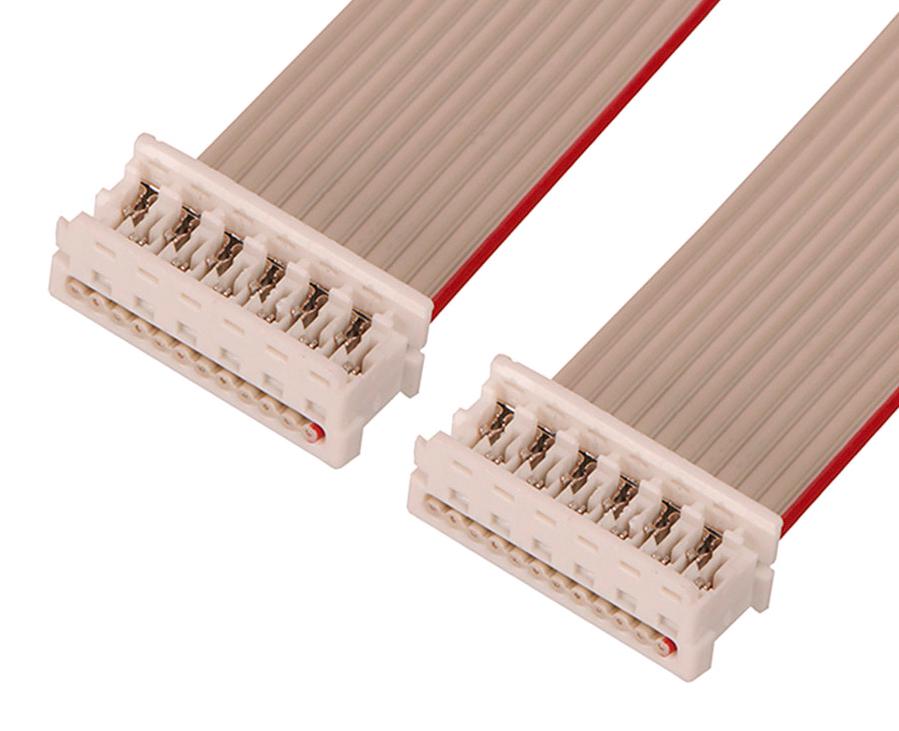

Buy the Buy Molex Picoflex Ribbon Cable Assembly Part Number 923151232 Online
Purchase the Molex Ribbon Cable Assembly online for your electronic, automation, or medical device projects. This versatile, UL and CSA certified connector features secure locking, dual-beam contacts, and optional gold plating for enhanced durability. Easy to install with ejection tooling slots and a scalloped profile for precise positioning, it supports 250V and 1.2A rated currents and operates from -40°C to +105°C. Make your procurement simple and quick while ensuring high-quality reliable connections for successful project deployment.
Buy Molex 923151232 now and experience reliable, high-quality ribbon cable solutions for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 923151232?
You can click on the BUY or RFQ button to purchase 923151232 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151232?
You can download the 923151232 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151232?
MOLEX
