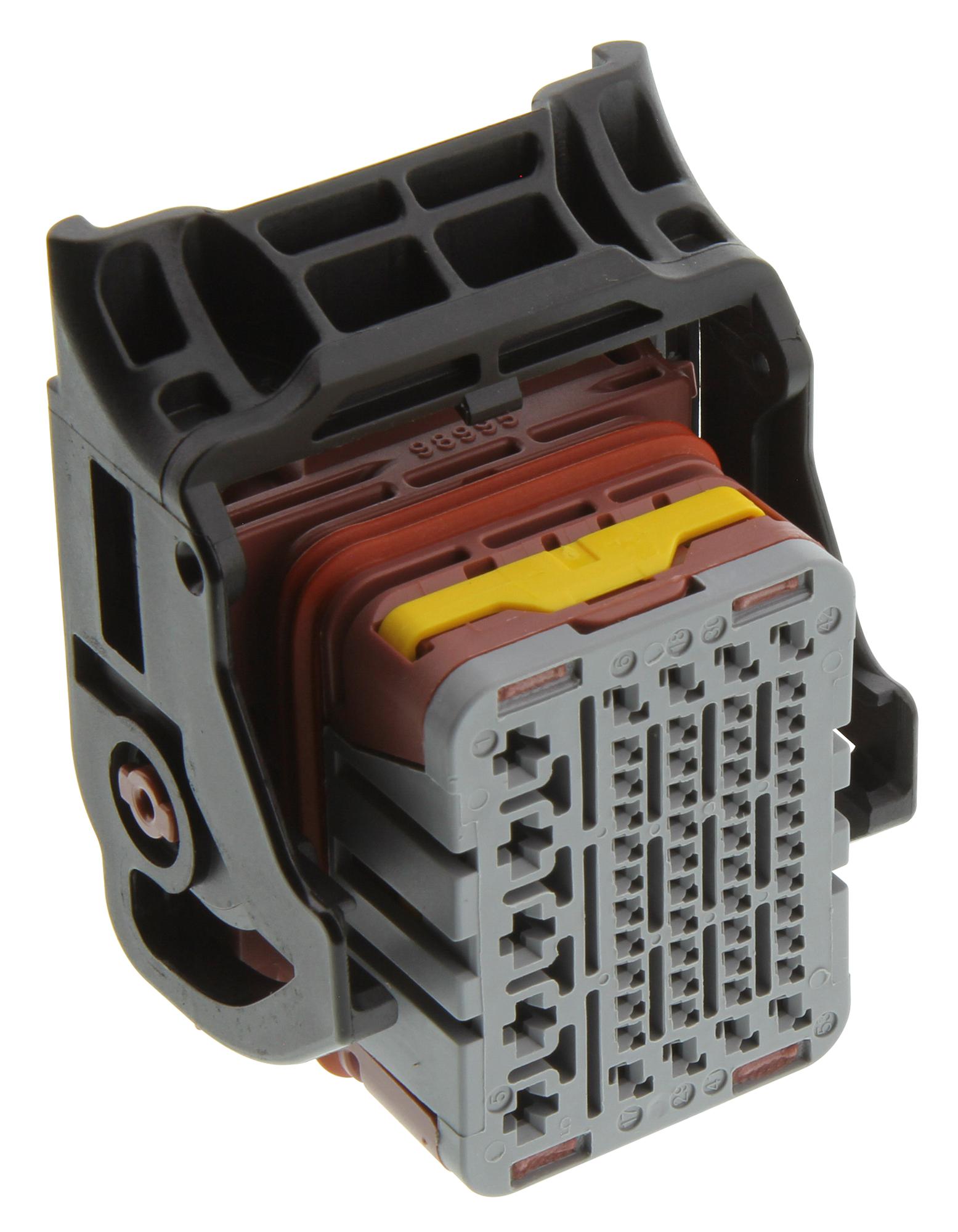

MOLEX 643211018 Sealed Modular Connector
The MOLEX 64321-1018 is a CMC and CMX Sealed, Hybrid, Modular Connector, offering a high-density, power, modular connecting system for Power Train and Body Electronics applications in cars, trucks, and busses. It accommodates various terminal sizes (2.80mm, 1.50mm, and 0.635mm) and is designed for robust performance in demanding environments. The connector is sealed, polarized, and features keyed to mating parts, ensuring secure and reliable connections. It is RoHS compliant and halogen-free, meeting industry standards for environmental responsibility.
MOLEX 643211018 Sealed Modular Connector Specifications:
- Product Family Series: 64321
- Application: Power, Wire-to-Board
- Circuits (maximum): 53
- Circuits Detail: 5x 2.8mm, 8 x 1.5mm, 40 x 0.635mm terminals
- Color - Resin: Gray
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 50.888/g
- Number of Rows: 5
- Packaging Type: Carton
- Current - Maximum per Contact: 12.0A, 2.5A, 21.0A
- Temperature Range - Operating: -40° to +125°C
- Pitch - Mating Interface: 2.54mm, 3.50mm, 7.00mm
- Polarized to Mating Part: Yes
- Stackable: No
- Mates With: Please Contact Molex for Details
- EU ELV Compliant: Yes
- EU RoHS Compliant: Yes
- China RoHS: Not Relevant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Relevant
