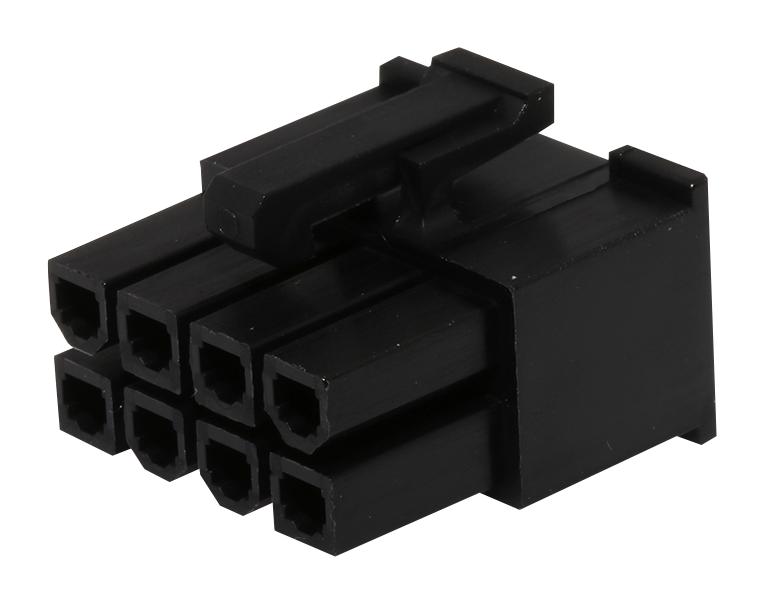

MOLEX 39013085 Dual Row Receptacle Housing
The MOLEX 39-01-3085 Mini-Fit Jr. receptacle housing is a versatile component used in wire-to-board and wire-to-wire connections. Its dual-row design accommodates 8 circuits, making it suitable for applications requiring multiple connections. Constructed from durable nylon and rated UL 94V-2, this housing provides reliable insulation and flame retardancy. It is commonly used in power applications and is compatible with various Mini-Fit and PCB header series, offering flexibility in system design. The housing is RoHS compliant and designed for ease of assembly and secure mating.
MOLEX 39013085 Dual Row Receptacle Housing Specifications:
- Series: 5557
- Application: Power, Wire-to-Board, Wire-to-Wire
- Circuits: 8
- Flammability: 94V-2
- Gender: Receptacle
- Material: Nylon
- Weight: 1.714/g
- Rows: 2
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Polarized: Yes
- Stackable: No
- Temperature Range: -40° to +105°C
- Current per Contact: 13.0A
- Lead-free Process Capability: N/A
- Engineering Number: 5557-08R-BL
- Packaging Type: Bag
- Mates With: 5559 Crimp Housings, 5566 PCB Headers, 5569 PCB Headers, 43810 PCB Headers, 44068 PCB Headers, 44281 PCB Headers, 87427 PCB Headers, 42404 PCB Headers, 42440 PCB Headers
- Use With: 5556 Mini-Fit Female Crimp Terminals, 45750 Mini-Fit Plus HCS Crimp Terminal
Buy the 39-01-3085 MOLEX Dual Row Receptacle Housing | myMectronic
Purchase the MOLEX 39-01-3085 receptacle housing securely and efficiently for your next project.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 39013085?
You can click on the BUY or RFQ button to purchase 39013085 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39013085?
You can download the 39013085 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39013085?
MOLEX
