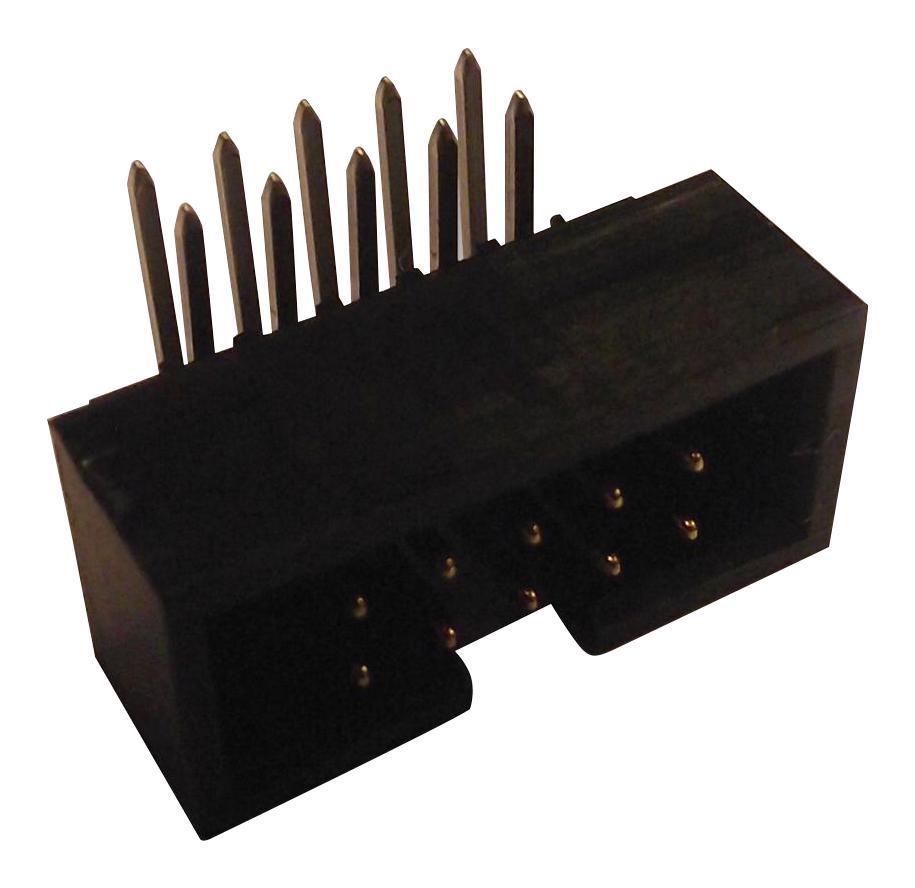

MOLEX 702471651 C-Grid Connector
The 2.54mm Pitch C-Grid Header is a low-profile, right-angle, shrouded connector with dual row design, 16 circuits, and gold selective plating, offering reliable electrical performance for wire-to-board applications. It features a durable construction with RoHS compliance, UL and CSA certification, and supports up to 2.5A current per contact at 250V DC. The connector's PCB mating interface has a pitch of 2.54mm, with a PCB thickness recommendation of 1.60mm. Its operating temperature range is from -55°C to +120°C, making it suitable for various industrial environments.
MOLEX 702471651 C-Grid Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Circuits (Loaded): 16
- Color - Resin: Not specified
- Durability (mating cycles max): Not specified
- Flammability: Not specified
- Glow-Wire Capable: Not specified
- Material - Mating: Not specified
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 2.369 grams
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 1.60mm
- PCB Locator: Center Slot
- PCB Retention: Fully
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Temperature Range - Operating: -55°C to +120°C
- Voltage - Maximum: 250V DC
- Current - Maximum per Contact: 2.5A
- Solder Process Temperature Max: 235°C
- Process Duration at Max Temp: 10sec
- Certifications: UL, CSA, RoHS Compliant
- Halogen-Free: Not Low-Halogen
- RoHS: Compliant
Buy the Molex Series C-Grid 2.54mm Connector: 702471651
Purchase the high-quality Molex C-Grid Connector today and benefit from its robust design, gold plating, and compliance with industry standards. This 2.54mm pitch, dual-row connector provides a secure and reliable wire-to-board connection ideal for industrial and automation applications. With a maximum current of 2.5A per contact, operating temperature from -55°C to +120°C, and UL and CSA certifications, it ensures performance and safety. Available now for fast delivery to meet your project timelines.
Order your Molex Series C-Grid 2.54mm Connector today and ensure reliable, high-performance wire-to-board connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 702471651?
You can click on the BUY or RFQ button to purchase 702471651 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 702471651?
You can download the 702471651 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 702471651?
MOLEX
