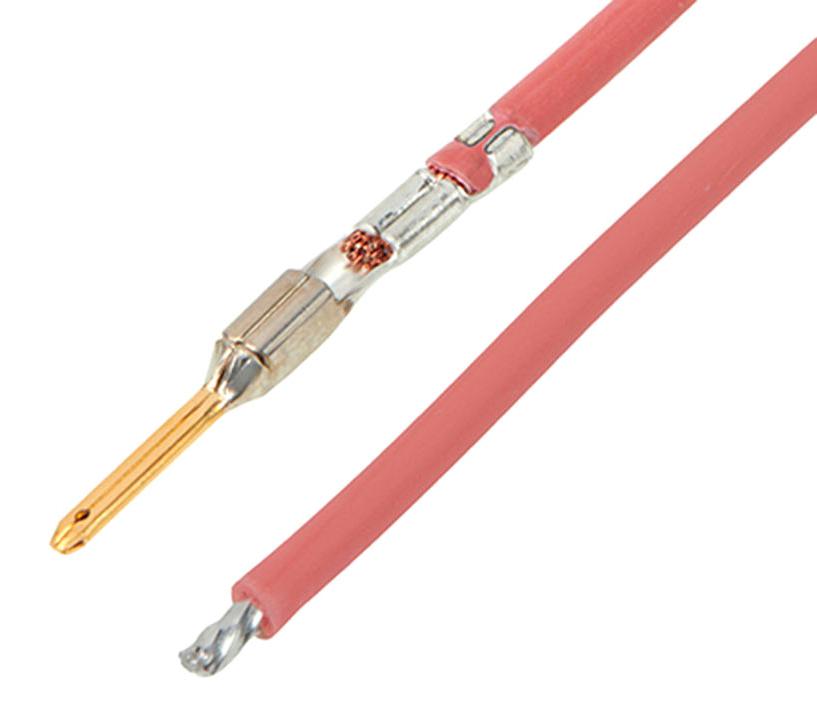

MOLEX 2163032202 MX150 Pre-Crimped Lead
The MOLEX 216303-2202 is an off-the-shelf pre-crimped lead assembly, specifically designed for applications requiring a ready-to-use connection. It connects MX150 terminals to pigtails, offering a convenient solution for power, wire-to-board, and wire-to-wire configurations. The gold plating ensures reliable electrical contact, while the 150mm length and 18 AWG wire gauge provide flexibility and adequate current carrying capacity. This component is ideal for industrial automation, automotive systems, and other applications where pre-terminated wiring simplifies assembly and reduces labor costs.
MOLEX 2163032202 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 2.248/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 18
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842071476
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Yes
- status: Low-Halogen
- rohs_phthalates: Not Contained
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
- drawing_number: 2163031201-000
