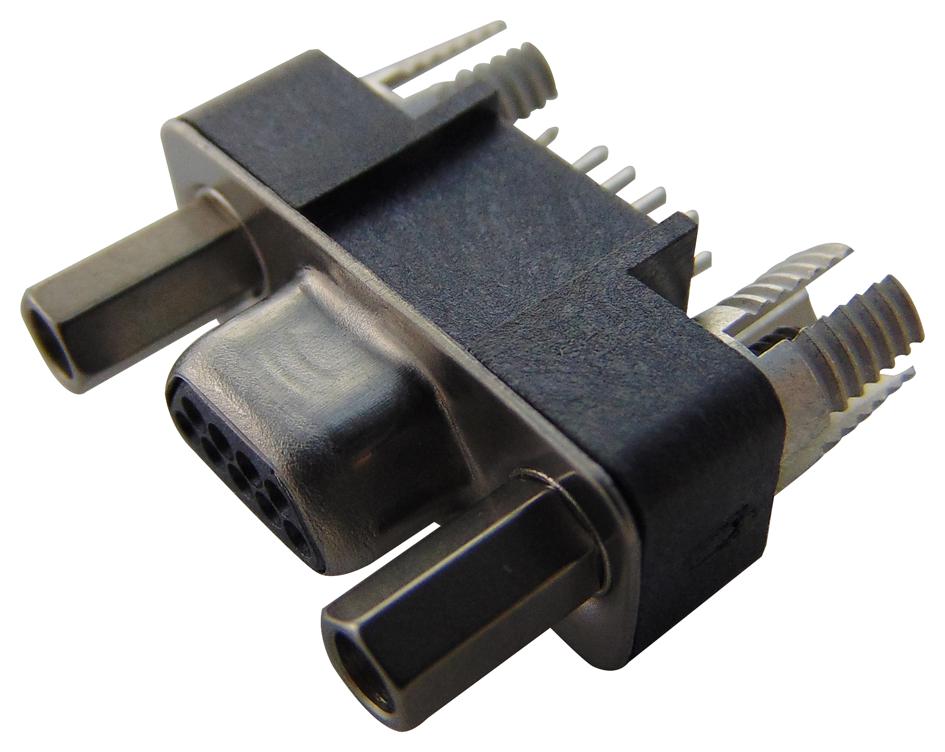

MOLEX 836119023 Micro-D Connector
This high-density Micro-D connector features a 1.27mm pitch, vertical PCB mounting, and 9 circuits designed for wire-to-board applications. It supports up to 500 mating cycles, with gold-plated contacts for reliable connections. The connector is polarized to ensure correct mating orientation, with PCB retention and panel mounting options for versatile assembly. Operating temperature range from -40°C to +125°C and maximum voltage of 350V AC make it suitable for demanding performance environments. CompactSize and high durability make this connector ideal for high-density electronic assemblies.
MOLEX 836119023 Micro-D Connector Specifications:
- Series: 83611
- Product Family: VO Connectors
- Application: Wire-to-Board
- Component Type: Plug
- Circuits (Loaded): 9
- Circuits (Maximum): 9
- Durability: 500 mating cycles
- Material - Plating Mating: Gold
- Physical Orientation: Vertical
- PC Tail Length: 2.79mm
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.52mm
- Packaging Type: Tube
- Panel Mount: Yes
- Pitch - Mating Interface: 1.27mm
- Plating Min - Mating: 0.381μm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +125°C
- Termination Interface Style: Through Hole
- Current Max per Contact: 1.0A
- Shielded: Yes
- Voltage Max: 350V AC
- RoHS Compliant: Yes
- ElV Status: Not relevant
- Lead-Free Process Capability: N/A
Buy the Molex Series 83611 Micro-D Connector: 0836119023
Enhance your electronic projects with this high-density Micro-D connector featuring a 1.27mm pitch, 9 circuits, and gold-plated contacts for reliable performance. It is designed for wire-to-board applications with vertical PCB mounting and robust durability supporting up to 500 mating cycles. Its polarized design and PCB retention features ensure correct and secure connections, while operating in a temperature range from -40°C to +125°C. Ideal for demanding environments, this connector guarantees high performance, compact size, and ease of assembly for your high-density electronic systems.
Buy Molex 0836119023 high-density Micro-D connector now and experience unmatched reliability and performance in your electronic assemblies.
