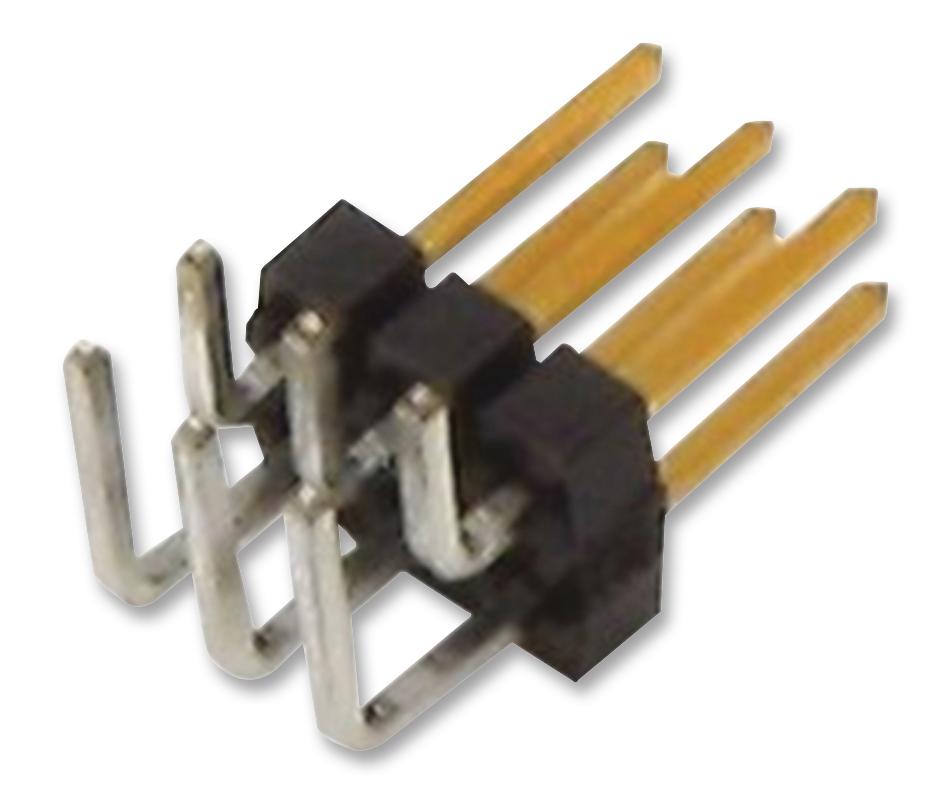

MOLEX 879110611 C-Grid Connector
The 2.54mm Pitch C-Grid Header, Right-Angle, Through Hole, with 6 circuits and 0.38mm gold selective plating, provides reliable high-current connections for circuit board integration. It features a durable copper alloy construction, UL certification, and RoHS compliance, making it suitable for various industrial applications. Designed for board-to-board connections, it supports a maximum voltage of 250V and current per contact of 3.0A, with a temperature operating range of -55°C to +105°C. The component's compact design ensures secure mating and easy installation in tight spaces.
MOLEX 879110611 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 6
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Operating Temperature Range: -55°C to +105°C
- Voltage Maximum: 250V
- Current per Contact: 3.0A
- Solder Process Temperature Max: 265°C
- Packaged as Tube
- First Mate / Last Break: No
- UL Certification: Yes
- RoHS and REACH compliant
- Dimensions: Pitch 2.54mm, PC Tail Length 1.60mm, Overall Length varies
- Application: PCB Board-to-Board, Signal, Wire-to-Board
Buy the Molex 879110611 – Reliable C-Grid Connector for Industrial Applications
Enhance your electronic assembly with the Molex C-Grid Connector featuring a 2.54mm pitch and 6 circuits. Designed with a robust copper alloy body, gold plating, and UL certification, it ensures reliable, high-current connections suitable for industrial applications. Its right-angle through-hole design allows easy installation on PCB boards, supporting up to 250V and 3.0A per contact. With RoHS compliance and a temperature range of -55°C to +105°C, this connector guarantees high performance, durability, and ease of use for engineers and technicians.
Get Molex 879110611 today—built for precision and long-lasting durability in industrial PCB connections.
Frequently Asked Questions
Where can I buy MOLEX 879110611?
You can click on the BUY or RFQ button to purchase 879110611 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 879110611?
You can download the 879110611 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 879110611?
MOLEX
