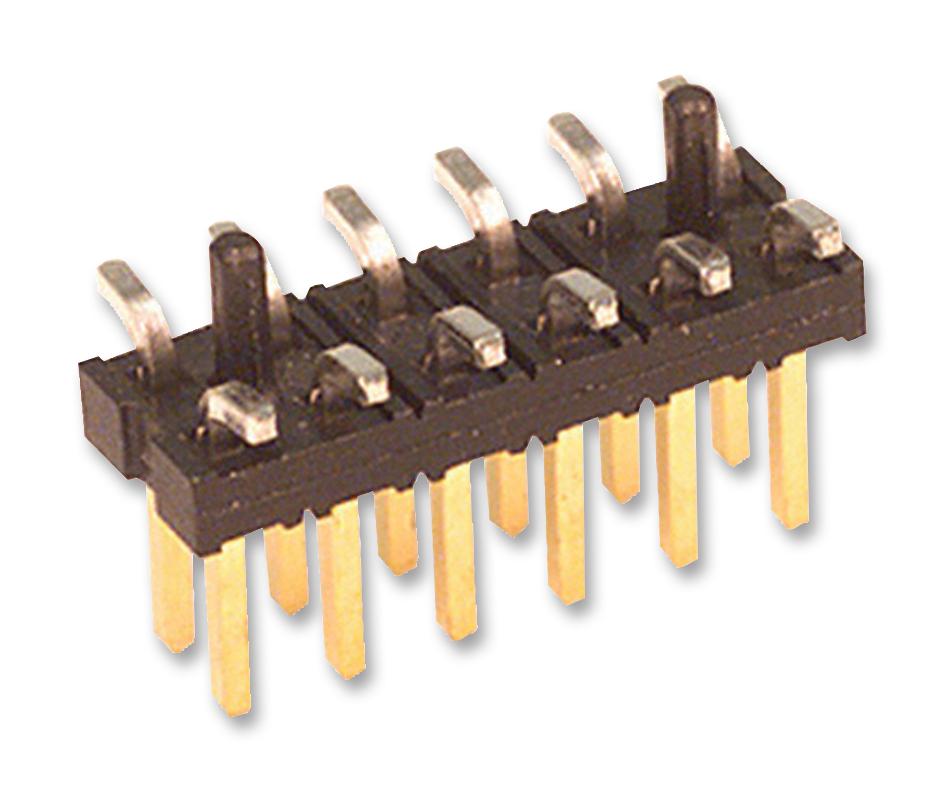

MOLEX 877591250 Milli-Grid Connector
The Milli-Grid™ Header is a high-reliability, surface mount connector system designed for board-to-board signal connections in industrial and electronics applications. Featuring 12 circuits with 0.3814mm gold selective plating, press-fit plastic pegs, and RoHS compliance, it offers excellent durability for up to 50 mating cycles. Operating within a temperature range of -55°C to +125°C, it ensures secure electrical connections with a maximum current of 2A per contact and voltage rating of 125V. Its compact, vertical design suits complex electronic assemblies requiring precision and robustness.
MOLEX 877591250 Milli-Grid Connector Specifications:
- Number of Circuits: 12
- Plate Material: Gold (0.3814mm Selective Plating)
- Color - Resin: Not specified
- Operating Temperature Range: -55°C to +125°C
- Maximum Current per Contact: 2A
- Maximum Voltage: 125V
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High-Temperature Thermoplastic
- Dimensions - Mated Height: Not specified
- Contact Pitch: 2.00mm
- Orientation: Vertical
- Shrouded: No
- Stackable: No
- Durability (Mating Cycles Max): 50
- Flammability: Not specified
- RoHS Compliance: Yes
- Reflow Process Capability: Yes
- Process Temperature Max: 260°C
- Solder Process Duration: 10 seconds
- Lead-free Process Capability: Reflow capable
- Packaging Type: Tube
Buy the Molex 87759–1250 – Reliable Milli-Grid Connector for Industrial Applications
Experience the reliability of the Milli-Grid Connector, designed for high-performance board-to-board connections in demanding industrial environments. Featuring 12 circuits, gold plating, and RoHS compliance, it offers excellent electrical conductivity and durability. Its vertical surface-mount design ensures easy installation and secure fit for complex electronic systems. Suitable for high-temperature operations up to 125°C, it supports a maximum current of 2A per contact and a voltage of 125V. Ideal for modern manufacturing requiring precision, robustness, and compliance with environmental standards.
Get Molex 87759–1250 today—built for precision and long-lasting durability in electronic assembly projects.
Frequently Asked Questions
Where can I buy MOLEX 877591250?
You can click on the BUY or RFQ button to purchase 877591250 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 877591250?
You can download the 877591250 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 877591250?
MOLEX
