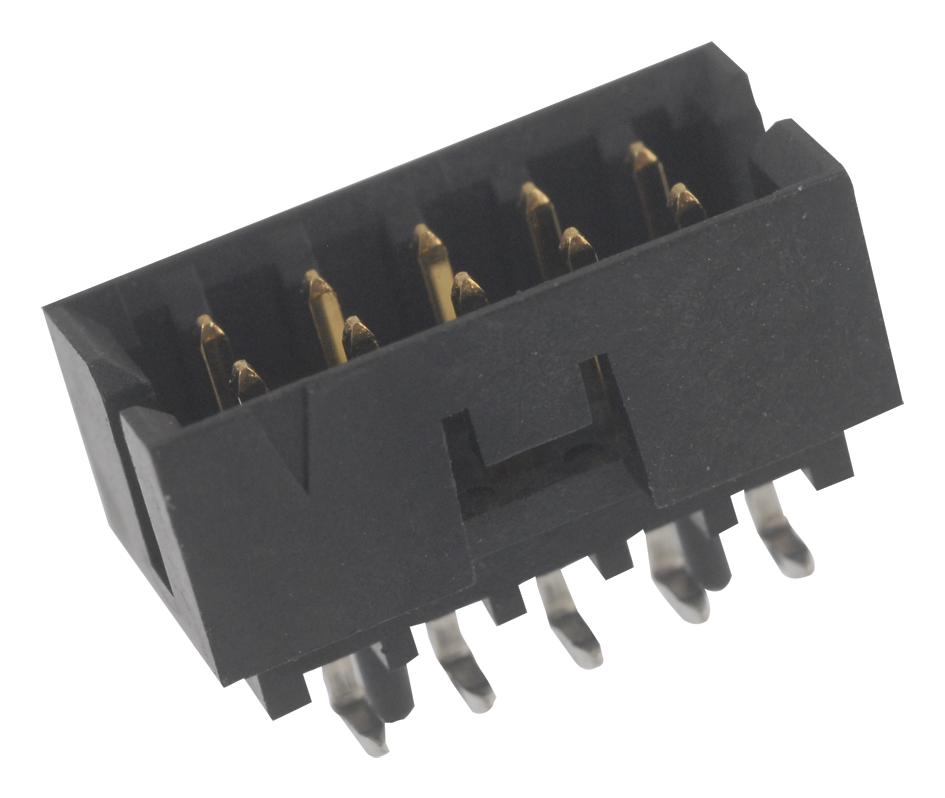

MOLEX 878320810 Milli-Grid Header
The MOLEX 87832-0810 Milli-Grid Header is a surface mount component designed for wire-to-board connectivity. It features 8 circuits and a vertical orientation, making it ideal for applications where space is limited. The header is shrouded for added protection and incorporates a locking window for secure mating. Constructed with phosphor bronze and nylon materials, and plated with gold and tin, it provides excellent electrical performance and durability. Commonly used in automotive applications, this Milli-Grid header offers a reliable and robust connection solution.
MOLEX 878320810 Milli-Grid Header Specifications:
- overview: Milli-Grid Connector System
- description: Milli-Grid Header, Surface Mount, Vertical, Shrouded, Lead-Free, 8 Circuits, 0.38µm Gold (Au) Plating, with Locking Window, without Cap, PCB Locator, Tube
- agency_certification: CSA LR19980, UL E29179
- product_family: PCB Headers
- application: Signal, Wire-to-Board
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles: 100
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 0.372
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- packaging_type: Tube
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- plating_min_mating_um: 0.381
- plating_min_termination_um: 1.905
- polarized_to_pcb: No
- shrouded: Fully
- stackable: No
- surface_mount_compatible: Yes
- temperature_range_operating_c: -55° to +105°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 2.0
- voltage_maximum_v: 125
- lead_free_process_capability: REFLOW
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- upc: 822348272464
