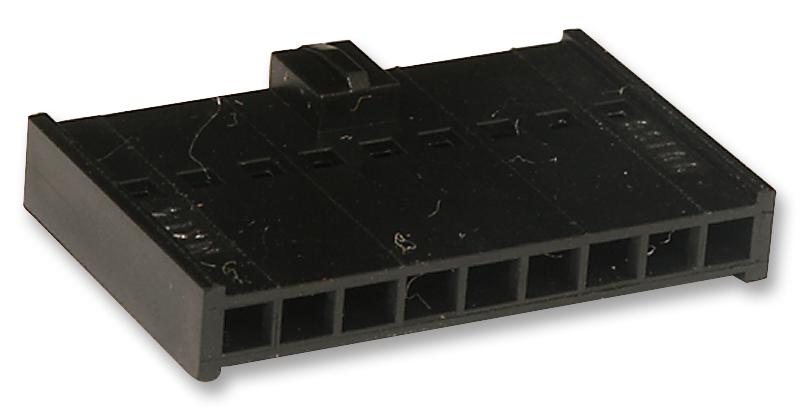

MOLEX 901560149 C-Grid III Crimp Housing
This 2.54mm pitch C-Grid III crimp housing features a single row with 9 circuits, ideal for wire-to-board applications in electronic and industrial equipment. Constructed from high-quality PPO resin, it offers excellent durability, and is UL certified, RoHS compliant, and halogen-free for safety and environmental standards. The black receptacle has a lock to mating part, is glow-wire capable, and operates within -55°C to +105°C temperature range, ensuring reliable performance in demanding environments. Suitable for connecting small electronic components and enhancing circuit integration.
MOLEX 901560149 C-Grid III Crimp Housing Specifications:
- Pitch - Mating Interface: 2.54mm
- Circuits (maximum): 9
- Color - Resin: Black
- Material - Resin: PPO
- Lock to Mating Part: Yes
- Glow-Wire Capable: Yes
- Temperature Range - Operating: -55°C to +105°C
- Net Weight: 0.731 g
- Packaging Type: Bag
- Certification: UL, RoHS compliant, Low-Halogen
- Reference - Drawing Numbers: E29179, PK-90156-0001, PS-99020-0001-001
- Agency Certification: UL
- Application: Signal, Wire-to-Board interconnects
- Series: C-Grid Ill
- Use With: 90120, 90121, 90136 series counterparts
Buy the Buy Molex C-Grid III Crimp Housing Part Number 0901560149 Online
Secure your electronic connections today by purchasing this high-quality Molex C-Grid III crimp housing. Its 2.54mm pitch, 9 circuits, and robust PPO material ensure durability and excellent performance in industrial and electronic applications. Certified by UL and RoHS compliant, this halogen-free receptacle operates effectively from -55°C to +105°C, providing safety and reliability in demanding environments. Whether for new designs or repairs, buy this precision connector online for fast delivery and superior circuit integration.
Buy Molex 0901560149 now and experience unmatched reliability and high-performance wire-to-board connectivity with durable and safe design.
