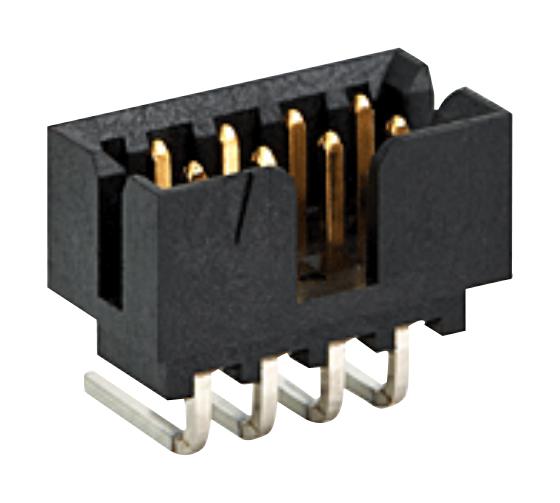

MOLEX 878331231 Milli-Grid Connector
The Milli-Grid Header from Molex is a high-quality right-angle, shrouded connector designed for wire-to-board applications. Featuring 12 circuits with 0.38 mm gold plating, it offers reliable electrical performance with a maximum current of 2.0A per contact and voltage capacity up to 125V. Its durable construction supports up to 100 mating cycles, made from flame-retardant nylon and phosphor bronze contacts. Suitable for automotive and industrial uses, it includes locking windows, optional PCB locators, and shrouded design for secure connections. Operating in temperatures from -55°C to +105°C, it ensures stable performance in demanding environments.
MOLEX 878331231 Milli-Grid Connector Specifications:
- Number of Circuits: 12
- Circuit Type: Signal, Wire-to-Board
- Contact Material: Phosphor Bronze
- Plating: Gold
- Resin Color: Not specified
- Maximum Current Per Contact: 2.0A
- Maximum Voltage: 125V
- Temperature Range: -55°C to +105°C
- Mating Cycles: Up to 100
- Operating Environment: Automotive and industrial applications
- Orientation: Right-Angle
- Pitch - Mating Interface: 2.16mm
- Termination Style: Through Hole
- PCB Thickness: Not specified
- Flammability: UL 94V-0
- Certifications: CSA, UL
- Soldering Temperature Max: 265°C
- Package Type: Tube
- Locking Feature: Yes
Buy the Buy Molex Milli-Grid Part Number 878331231 Online
Purchase the Molex Milli-Grid Connector today and experience dependable performance with a robust right-angle, shrouded design. Featuring 12 circuits with gold plating for excellent conductivity, this connector ensures secure, stable electrical connections in demanding environments. Its high-quality phosphor bronze contacts are rated for 2.0A and up to 125V, supporting up to 100 mating cycles. Ideal for automotive, industrial, and automation applications, it operates efficiently from -55°C to +105°C, with locking windows for added connection security, available for convenient online ordering.
Order your Molex Milli-Grid Series878331231 today and secure reliable, durable wire-to-board connections for your automotive or industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 878331231?
You can click on the BUY or RFQ button to purchase 878331231 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 878331231?
You can download the 878331231 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 878331231?
MOLEX
