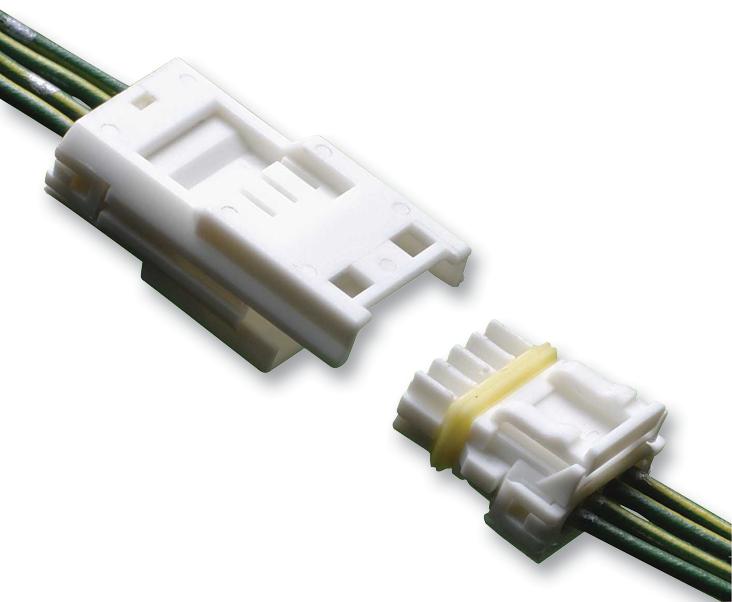

MOLEX 521160240 Miniature Waterproof Connector
Molex’s Mizu-P25 miniature wire-to-wire connectors provide the smallest size and highest level of dustproof and waterproof protection. The IP67 rated system ensures connector integrity when submerged in up to one meter of water. Designed for applications like motorcycles and air conditioners, the Mizu-P25 system features integral sealing, secure positive locks, and small mated diameters. It includes two sub-families: 125-volt and 250-volt versions, both offering features like a stabilizing bump at the tip and a raised body design for polarization. The system utilizes a unique spring-beam design for high pressure and small deflection, making it suitable for high vibration environments. It is available with various crimp terminals and housings to suit different circuit sizes and wire gauges.
MOLEX 521160240 Miniature Waterproof Connector Specifications:
- Contact Resistance: 10 milliohms max.
- Operating Temperature: -40 to +105 °C
- Dielectric Withstanding Voltage: 500V AC/1 min.
- Insulation Resistance: 250 Megohms min.
- Voltage: Up to 250V
- Current: Up to 3.0A
- Wire Range: AVSS/CAVS 0.30 sq. (22 AWG)
- Insulation Range: 1.40 ~ 1.70mm
- Material: Phosphor Bronze
- Plating: Tin
