MOLEX 8R4E36E03C3003 industrial connector

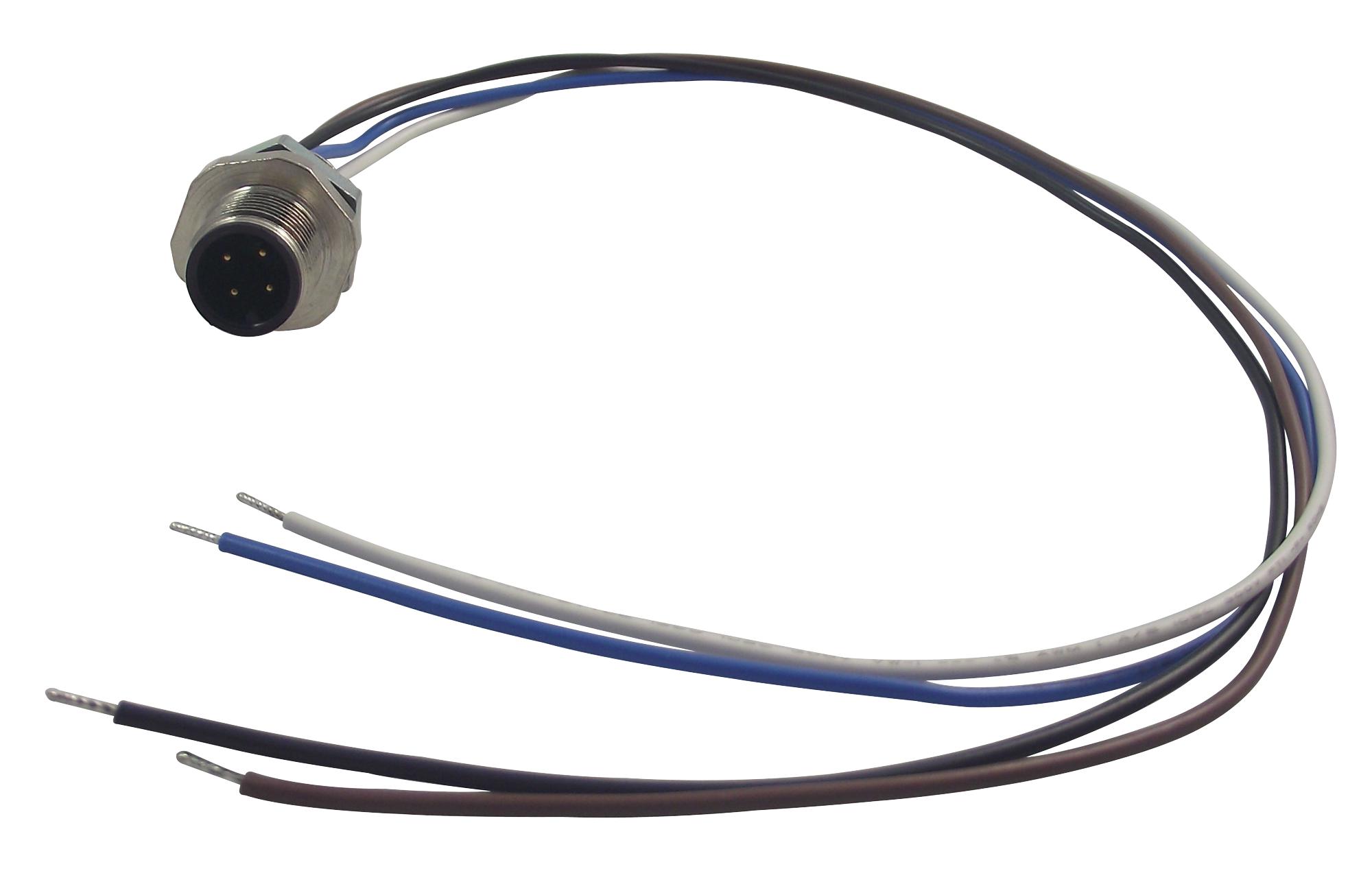

The Micro-Change M12 Receptacle is a robust, IP67-rated connector designed for industrial environments. Featuring a 4-pole female connection with M12x1 and M14x1 threads, it offers reliable environmental sealing and mechanical stability. The connector is made of nickel-plated brass, with a 0.30-meter straight cable lead, suitable for applications requiring a maximum of 4.0A and 250V. Its operating temperature range of -20°C to +80°C ensures durability across varied industrial conditions, making it ideal for automation and control systems that need secure and corrosion-resistant connections.
MOLEX 8R4E36E03C3003 industrial connector Specifications:
- IP Rating: IP67
- NEMA Rating: 6
- Product Family: Micro-Change
- Series: 120011
- Coupling Type: External Thread
- Gender: Male
- Length: 0.30m
- Material - Component: Nickel-plated Brass
- Mounting Thread Size: M14x1.0
- Net Weight: 20.100g
- Orientation: Straight
- Panel Mount: Front
- Poles: 4
- Temperature Range - Operating: -20°C to +80°C
- Wire Size AWG: 22
- Wire/Cable Type: Leads, UL 1061
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V AC/DC
Buy the Molex 1200110017 – Reliable M12 Industrial Connector for Automation Systems
Secure your industrial connections with the Molex Micro-Change M12 Receptacle. This 4-pole IP67-rated connector features a nickel-plated brass body, with M14x1 threads and a 0.30-meter straight cable. Designed for durability, it operates efficiently from -20°C to +80°C, handling up to 4A and 250V, making it perfect for automation, control systems, and harsh environments. Order online today for dependable, corrosion-resistant connectivity that enhances your industrial setups.
Buy Molex 1200110017 now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 8R4E36E03C3003?
You can click on the BUY or RFQ button to purchase 8R4E36E03C3003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 8R4E36E03C3003?
You can download the 8R4E36E03C3003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 8R4E36E03C3003?
MOLEX
