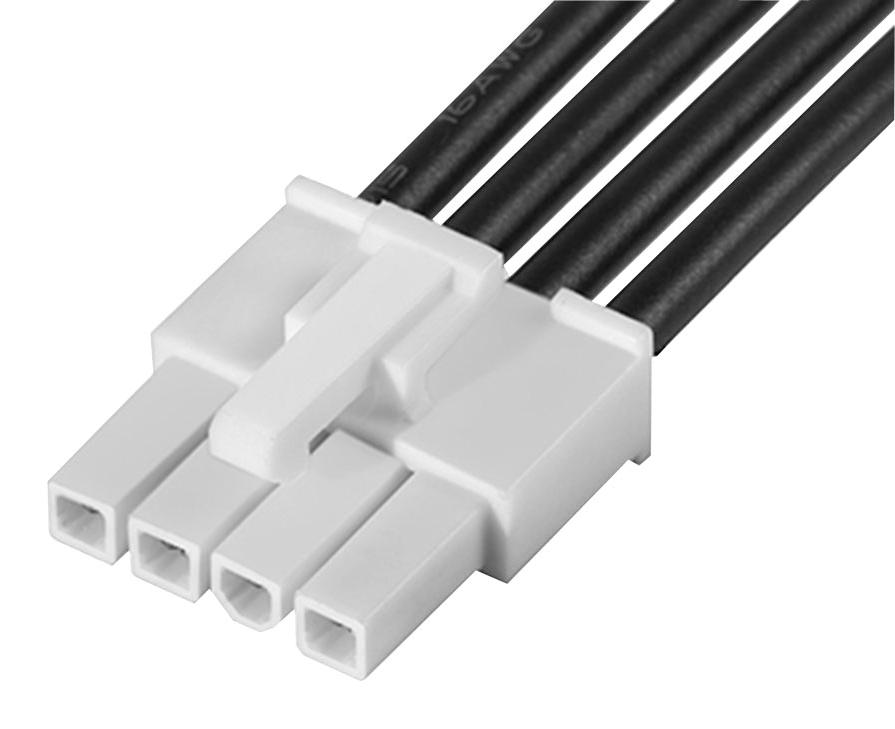

MOLEX 2153232043 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2043 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, brass material, and gold/tin plating for optimal conductivity and durability. This assembly is ideal for applications requiring a secure and reliable power connection, commonly found in industrial equipment, automotive systems, and consumer electronics.
MOLEX 2153232043 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 55.211
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter_mm: 1.80-3.10
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact_a: 9.0
- voltage_max_v: 600
- upc: 193264597772
- material_info: Not Low-Halogen
- reach_svhc: Not Contained
- sales_drawing: 2153232041-000
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
