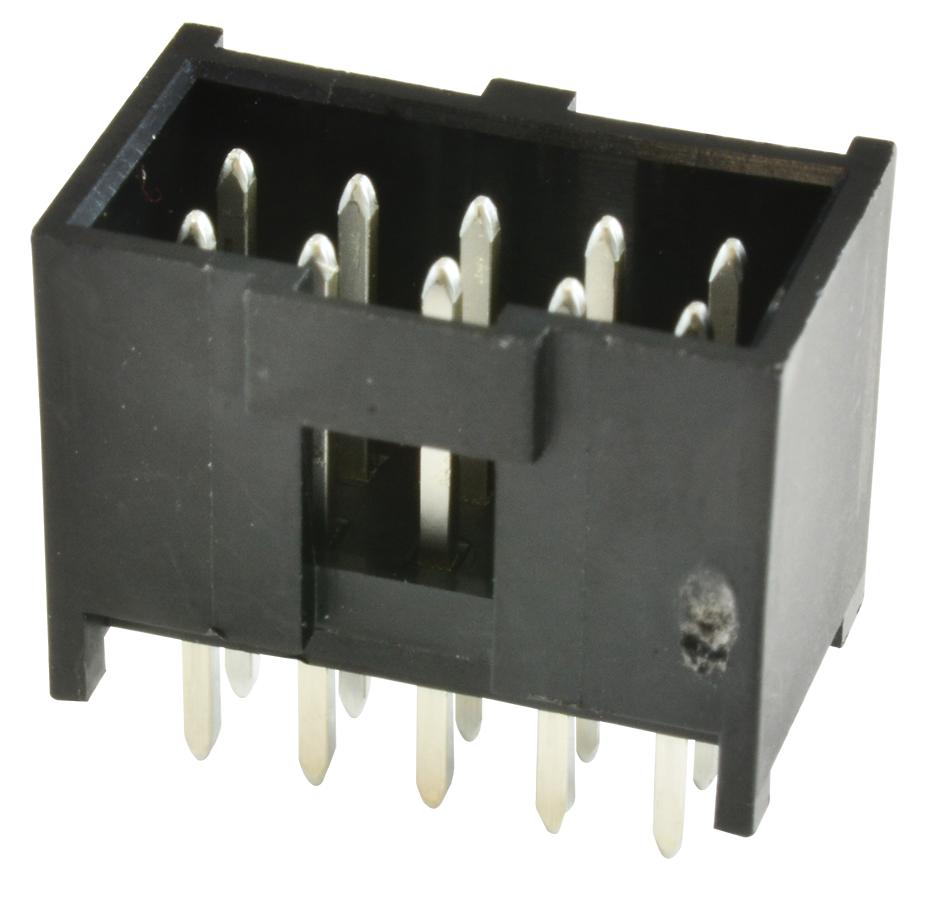

MOLEX 901301112 PCB Connector
The C-Grid III Header is a dual-row, vertical, shrouded PCB connector with 12 circuits, designed for signal and wire-to-board applications. Made from durable polyester resin with brass contacts, it features tin-plated contacts for reliable connection and corrosion resistance. The connector supports a maximum current of 3.0A per contact and a voltage of 350V AC/DC. Its key features include a pitch of 2.54mm, operating temperature range of -55°C to +125°C, and a mating cycle durability of up to 30 cycles. Perfect for compact and high-reliability electronics, it is RoHS compliant and suitable for various industrial applications.
MOLEX 901301112 PCB Connector Specifications:
- Number of Circuits: 12
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Guide to Mating Part No: Yes
- Lock to Mating Part: Yes
- Orientation: Vertical
- PC Tail Length: 2.90mm
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 3.048um
- Plating min - Termination: 3.048um
- Operating Temperature Range: -55°C to +125°C
- Voltage - Maximum: 350V AC/DC
- Current - Maximum per Contact: 3.0A
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Packaging Type: Tray
- Assembly Style: Through Hole
Buy the Buy Molex C-Grid III Part Number 901301112 Online
Purchase the Molex C-Grid III PCB connector online for a reliable and high-quality solution in signal and wire-to-board applications. With 12 circuits, a 2.54mm pitch, and a temperature range of -55°C to +125°C, this connector ensures long-lasting durability and excellent performance. Made from high-quality materials, it features tin-plated contacts for corrosion resistance and can withstand up to 30 mating cycles. Its compact size and RoHS compliance make it ideal for demanding industrial, consumer, and medical electronics. Order now for quick delivery and secure connections.
Get Molex C-Grid III 901301112 today—designed for reliable signal connections and high durability in compact electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 901301112?
You can click on the BUY or RFQ button to purchase 901301112 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901301112?
You can download the 901301112 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901301112?
MOLEX
