MOLEX 38001400 PCB Connector
The KK 254 PC Board Connector by Molex is a bottom entry, 10-circuit connector designed for reliable board-to-board connections. Made from nylon with tin-plated phosphor bronze contacts, it features a 3.60mm pitch, RoHS and UL compliance, and a maximum voltage of 500V. Suitable for applications requiring a natural white color, this connector offers a robust 2.5A current capacity and a 1.60mm PC tail length with a bottom entry design. Ideal for signal and low-power electrical connections, it’s compatible with various mating headers and ensures secure, stable connection performance.
MOLEX 38001400 PCB Connector Specifications:
- Circuits: 10
- Maximum Circuits: 10
- Color: Natural (White)
- Flammability: 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 1.216 grams
- Number of Rows: 1
- Orientation: Bottom Entry
- PC Tail Length: 3.60 mm
- PCB Thickness - Recommended: 1.60 mm
- Pitch - Mating Interface: 2.54 mm
- Pitch - Termination Interface: 2.54 mm
- Voltage - Maximum: 500V
- Current - Maximum per Contact: 2.5A
- Temperature Range - Operating: Not specified (external data indicates max process temp 235°C)
- Solder Process Data: Max. temp 235°C, duration unspecified

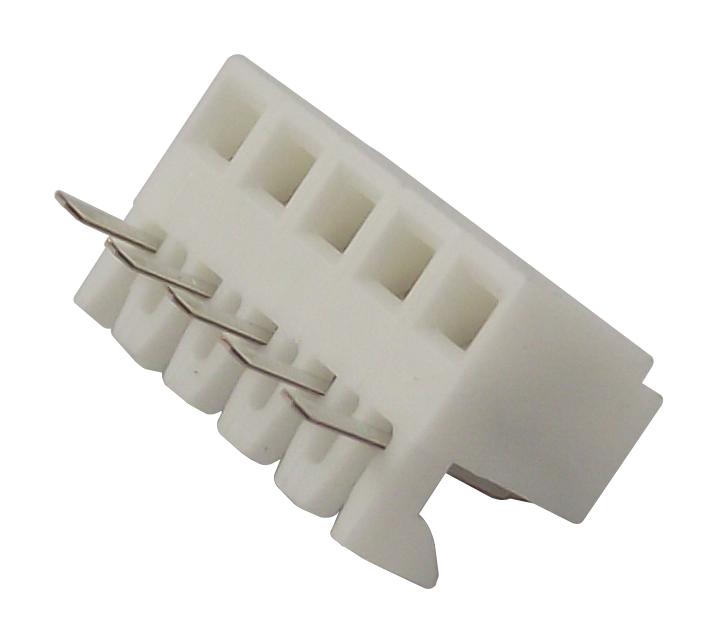

Buy the Molex Series KK PCB Connector: 38001400
Discover the Molex KK 254 PCB Connector, a reliable and high-quality solution for your electrical connections. Designed with 10 circuits and made from durable nylon with tin-plated phosphor bronze contacts, this connector offers a 2.54mm pitch and a maximum voltage of 500V. Its bottom entry design ensures secure installation in various electronic applications. Ideal for low-power, signal, and board-to-board connections, it guarantees stable performance, easy mating, and compliance with RoHS and UL standards, making it an excellent choice for reliable circuit assembly.
Buy Molex KK 254 PCB Connector 38001400 now and experience unmatched reliability and performance for your signal and low-power board-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 38001400?
You can click on the BUY or RFQ button to purchase 38001400 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 38001400?
You can download the 38001400 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 38001400?
MOLEX
