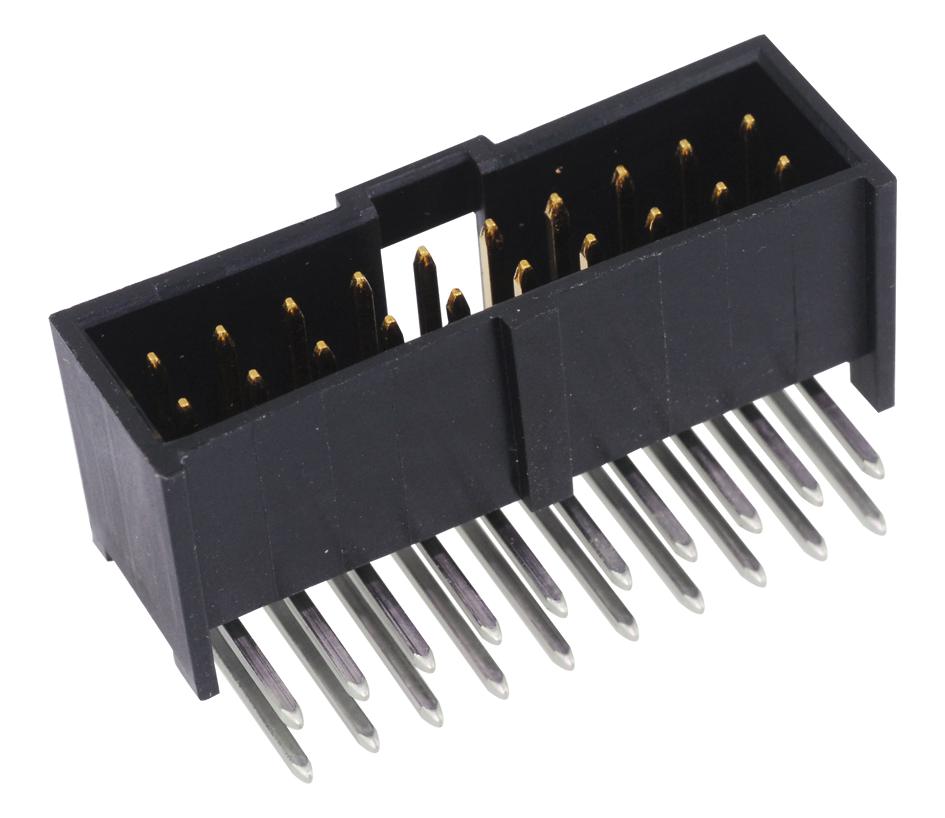

MOLEX 901303116 Signal Header
The C-Grid III Header is a robust signal wire-to-board connector with a dual-row, right-angle, shrouded design featuring 16 circuits, black color, and tin over nickel plating for enhanced durability. It supports up to 30 mating cycles, operates within a temperature range of -55°C to +125°C, and is compliant with RoHS and UL certifications. Suitable for PCB applications, it has a 2.54mm pitch, 3.048μm plating, and is designed for reliable, secure connections in industrial and electronic systems. It mates with the 90142 C-Grid III Crimp Housing and is ideal for high-reliability signal interconnections.
MOLEX 901303116 Signal Header Specifications:
- Product Family: PCB Headers
- Series: 90130
- Application: Signal, Wire-to-Board
- Color - Resin: Black
- Circuits (Loaded): 16
- Maximum Circuits: 16
- Orientation: Right Angle
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Temperature Range - Operating: -55°C to +125°C
- Flammability: 94V-0
- Guide to Mating Part No: 90142 C-Grid III Crimp Housing
- Connector Type: Shrouded, Fully Loaded
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Pin/Contacts: 16
- Contact Current: 3.0A per contact
- Maximum Voltage: 350V AC/DC
- Surface Mount Compatible: No
- Lock to Mating Part: Yes
- Durability (Mating Cycles): 30
- Packaging: Tray
- RoHS & UL Certified, Halogen-Free
- Process Temperature Max.: 235°C
Buy the Molex Series 90130 C-Grid III Signal Header: 901303116
Purchase the Molex Series 90130 C-Grid III Signal Header online today to guarantee high-performance signal connections in your electronic systems. This dual-row, right-angle, shrouded connector with 16 circuits offers durability with 30 mating cycles, a wide temperature range from -55°C to +125°C, and reliable tin over nickel plating. Compatible with 90142 housing, it fits PCB applications with a 2.54mm pitch, UL and RoHS certifications, and halogen-free construction, making it ideal for dependable, high-quality wiring solutions in industrial and electronic environments.
Order your Molex Series 90130 C-Grid III 901303116 today and ensure your electrical connections are secure, reliable, and high-quality for industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 901303116?
You can click on the BUY or RFQ button to purchase 901303116 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901303116?
You can download the 901303116 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901303116?
MOLEX
