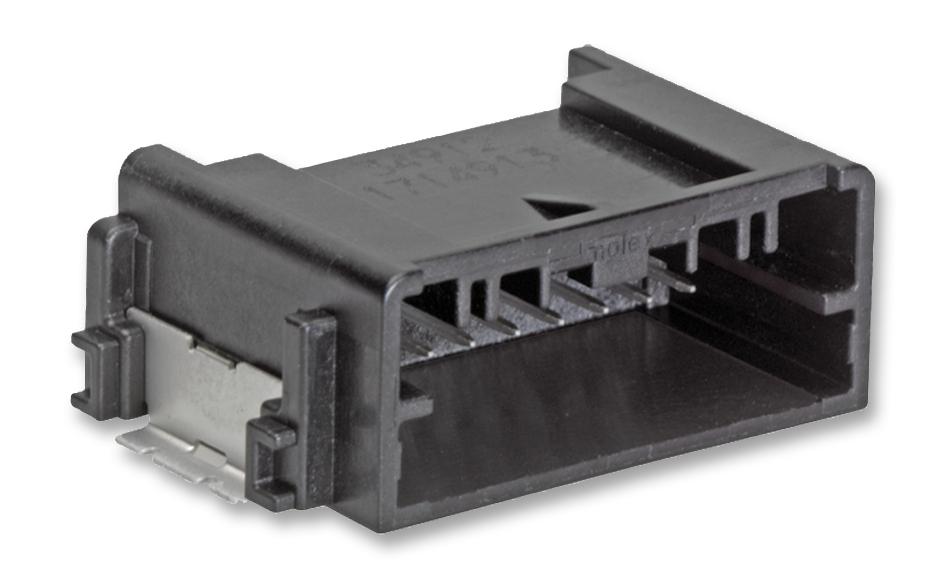

MOLEX 349126080 Power Signal Header
The Mini50™ Unsealed Header is a right-angle, surface-mount connector with a single row of 8 circuits, plated with gold for enhanced corrosion resistance. Designed for power and signal applications, it features durable brass construction with gold over nickel plating, providing reliable electrical performance up to 5.0A and 500V DC. This SMT header supports polarization and features a tape and reel packaging for efficient automated assembly. Suitable for PCB mounting, it operates within a temperature range of -40°C to +105°C. Its compact design ensures secure connections in various electronic systems, optimizing performance and reliability.
MOLEX 349126080 Power Signal Header Specifications:
- Number of Circuits: 8
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Pitch - Mating Interface: 2.00mm
- Orientation: Right Angle
- PCB Retention: Yes
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 5.0A
- Voltage - Maximum: 500V DC
- Packaging Type: Embossed Tape on Reel
- Application: Power, Signal, Wire-to-Board
- Seam: Not specified
- Lock to Mating Part: No
- Polarized to Mating Part: Yes
- Material - Resin: Not specified
- Reference - Drawing Numbers: SD-34912-001-000
Buy the Molex Series Mini50 Power Signal Header: 0349126080
Enhance your electronic assemblies with the Molex Mini50 Series power and signal header, featuring 8 circuits in a compact right-angle SMT design. Gold-plated for superior corrosion resistance, it supports up to 5.0A and 500V DC, ensuring reliable electrical performance. The durable brass construction and tape and reel packaging facilitate quick automation and assembly. Operating efficiently within a wide temperature range from -40°C to +105°C, this high-quality header provides secure, stable connections suitable for diverse power and data applications in industrial and consumer electronics.
Order your Molex Series Mini50 power and signal header today and ensure reliable connections for your electronic projects with optimized performance.
