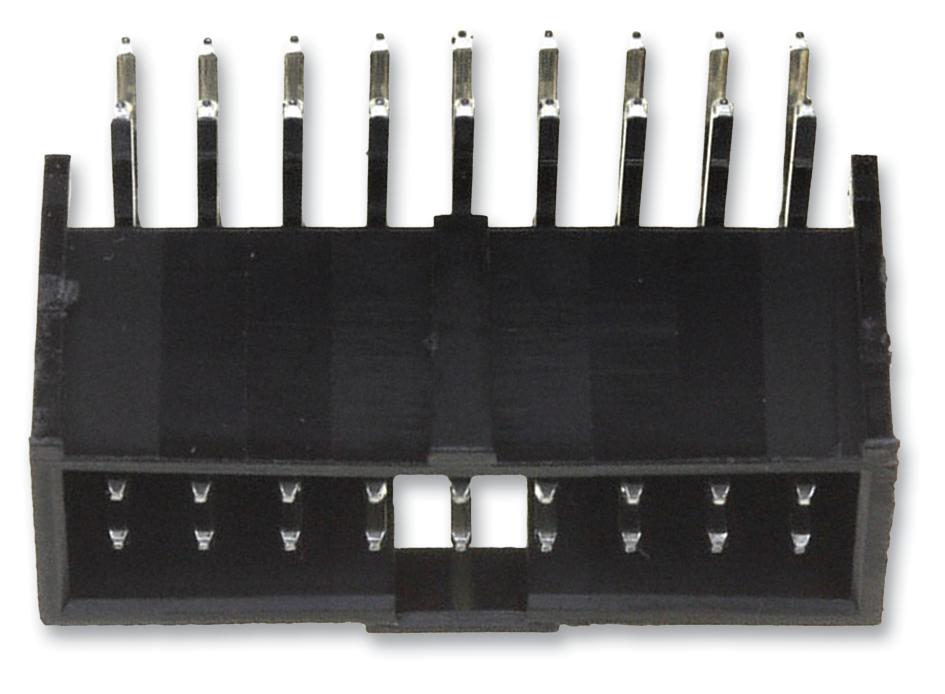

MOLEX 901303118 C-Grid Connector
The C-Grid III™ Header is a dual-row, right-angle, shrouded connector featuring 18 circuits. Crafted with a durable construction, it has a black resin housing and is fully loaded with 3 meters of tin over nickel plating for reliable electrical performance. Suitable for wire-to-board applications, it provides maximum rated currents of 3.0A per contact and a maximum voltage of 350V AC/DC. With a temperature range of -55°C to +125°C, it's designed for robust industrial and electronic integration, ensuring secure and stable connections in demanding environments.
MOLEX 901303118 C-Grid Connector Specifications:
- Number of Circuits: 18
- Color - Resin: Black
- Material - Metal: Not specified
- Material - Plating Mating: Tin over Nickel (Sn/Ni)
- Material - Plating Termination: Not specified
- Material - Resin: Polyester
- Durability (mating cycles max): Not specified
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Operating Temperature Range: -55°C to +125°C
- Pin Pitch (Mating Interface): 2.54mm
- PCB Tail Length: 2.90mm
- Orientation: Right Angle
- Shrouded: Yes
- Surface Mount Compatible: No
- Packaging: Tray
- Lock to Mating Part: No
- Guide to Mating Part: None
- Polarized to Mating Part: No
- Stackable: No
Buy the Buy Molex C-Grid III Connector Part Number 0901303118 Online
Purchase the Molex C-Grid III™ Connector Part Number 0901303118 online for robust, high-performance wire-to-board connections. Featuring 18 circuits in a dual-row, right-angle, shrouded design, it offers excellent durability with up to 3.0A per contact and a maximum voltage of 350V. Constructed with polyester resin and tin over nickel plating, this connector operates effectively between -55°C and +125°C. Ideal for industrial and electronic integration, it ensures secure and stable connections in demanding environments, delivering reliability and efficiency in your projects.
Buy Molex 0901303118 now and experience unmatched reliability, high-current capacity, and secure connections for demanding electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 901303118?
You can click on the BUY or RFQ button to purchase 901303118 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901303118?
You can download the 901303118 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901303118?
MOLEX
