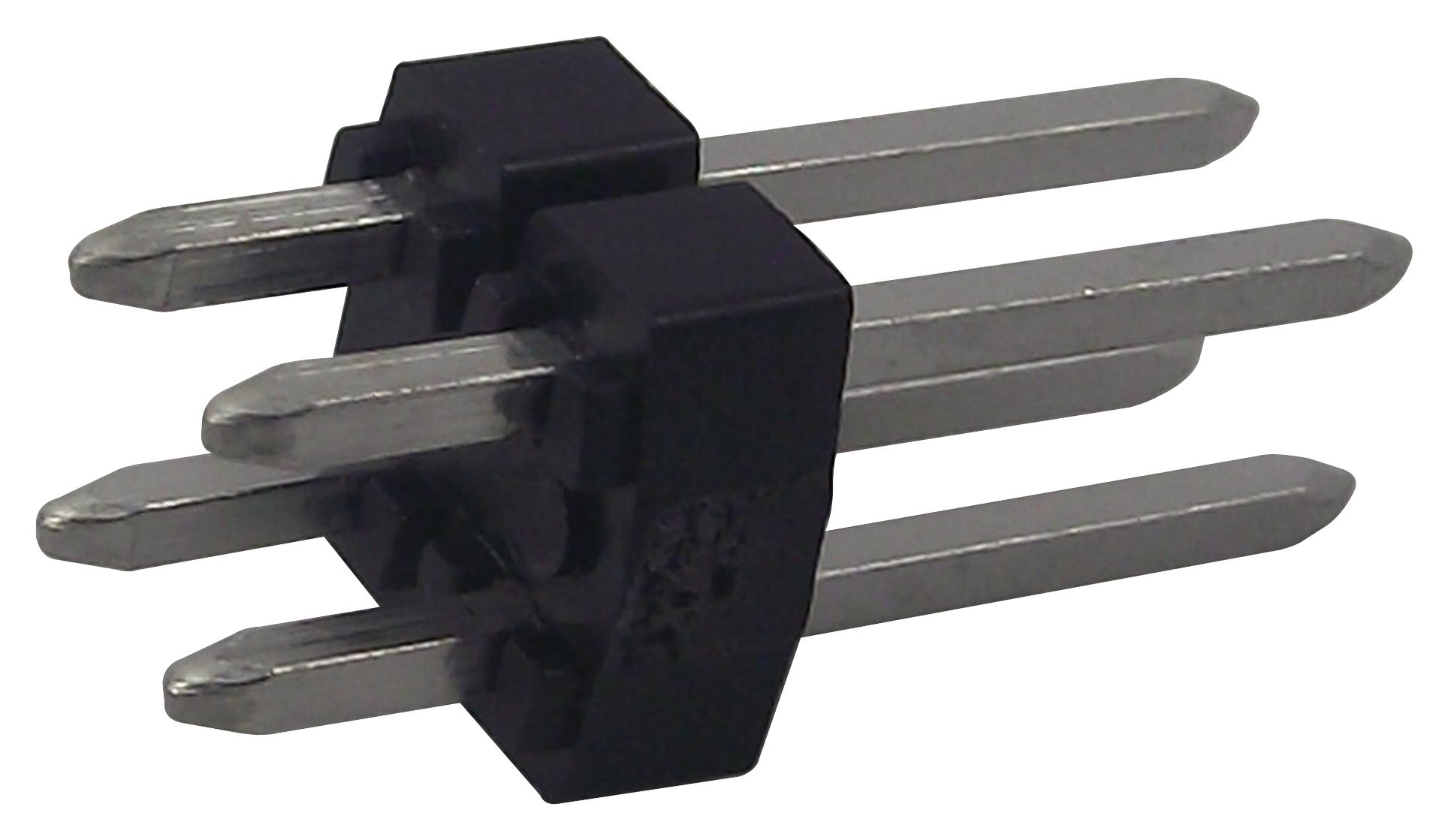

MOLEX 901310762 PCB Header
The C-Grid III Interconnects are 2.54mm pitch headers featuring a dual-row, vertical design with 4 circuits and 0.38-micron gold selective plating. Designed for wire-to-board applications, these PCB headers are made of brass with gold and tin plating, ensuring durability and reliable contact. Rated for operating temperatures from -55°C to +125°C, they support currents up to 3A and voltages up to 350V. Suitable for numerous industrial, electronic, and automation applications, they come in black resin, are RoHS compliant, halogen-free, and come in tray packaging for easy handling.
MOLEX 901310762 PCB Header Specifications:
- Pitch: 2.54mm
- Number of Rows: 2
- Circuits: 4 (loaded), 4 (maximum)
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Color - Resin: Black
- First Mate / Last Break: No
- Glow-Wire Capable: No
- Operating Temperature Range: -55°C to +125°C
- Current - Maximum per Contact: 3A
- Voltage - Maximum: 350V
- Net Weight: 0.247g per contact
- Packaging: Tray
- Orientation: Vertical
- PC Tail Length: 2.90mm
- PCB Locator: None
- PCB Retention: None
- Termination Interface: Through Hole
- Lock to Mating Part: No
- Shrouded: No
- Stackable: No
Buy the Molex 90131 – Reliable Wire-to-Board Interconnects for Industrial Applications
Install the Molex PCB Header easily in your electronic assemblies, ensuring reliable electrical connections with high current capacity and temperature stability. Designed for industrial and automation use, these gold-plated headers are RoHS compliant, halogen-free, and feature a compact 2.54mm pitch. They come in tray packaging for easy handling and assembly, making them an excellent choice for manufacturing processes demanding durability and consistency. Upgrade your projects with trusted interconnect solutions today.
Order your Molex 90131 series PCB headers today and enhance your electronic projects with dependable, high-quality interconnect solutions.
Frequently Asked Questions
Where can I buy MOLEX 901310762?
You can click on the BUY or RFQ button to purchase 901310762 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901310762?
You can download the 901310762 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901310762?
MOLEX
