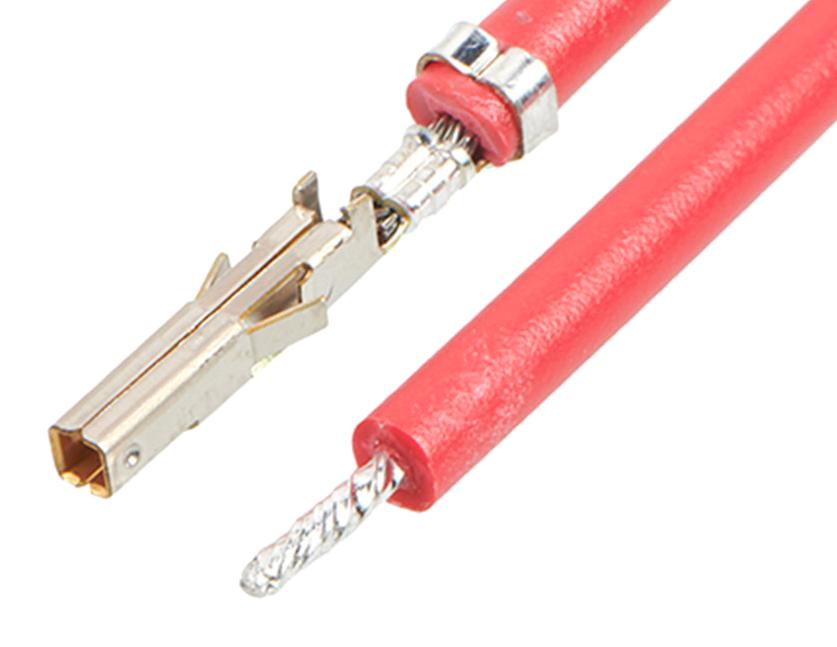

MOLEX 2153412212 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2212 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. This assembly incorporates a Mini-Fit Jr. female connector on one end and a pigtail on the other, offering a convenient and ready-to-use solution. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. The 18 AWG wire provides adequate current carrying capacity (up to 9.0A) and supports voltages up to 600V. It is RoHS compliant and suitable for various industrial and commercial environments.
MOLEX 2153412212 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 2.752 g
- packaging_type: Bag, Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559800
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
