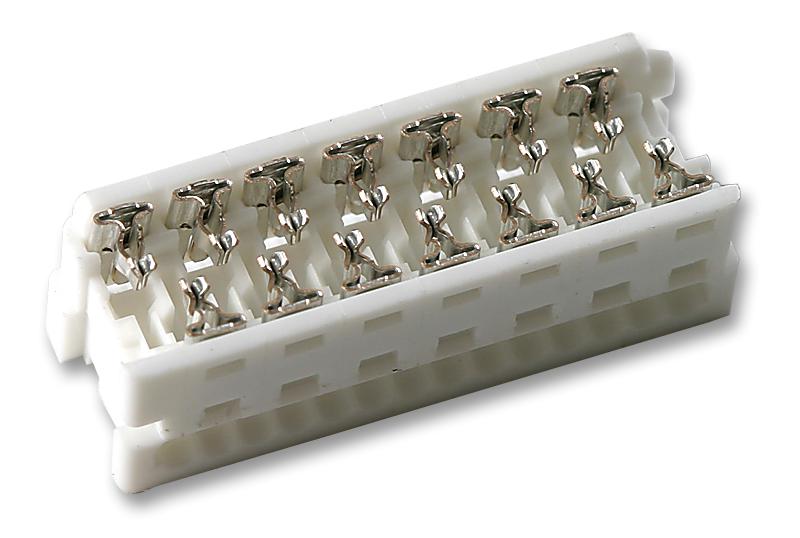

MOLEX 903270314 Picoflex Ribbon Cable Connector
The MOLEX 90327-0314 is a Picoflex PF-50 ribbon cable connector designed for low-profile applications. This connector features 14 circuits and utilizes an IDT (Insulation Displacement Termination) or pierce termination style, suitable for connecting ribbon cables. Constructed with a phosphor bronze metal body, tin plating for enhanced conductivity, and a durable polyester resin, it ensures reliable performance. It's commonly used in consumer electronics, automotive, and industrial equipment where space is limited and a secure ribbon cable connection is required. The connector's vertical entry angle and polarized design contribute to ease of assembly and prevent mis-mating.
MOLEX 903270314 Picoflex Ribbon Cable Connector Specifications:
- circuits_loaded: 14
- circuits_maximum: 14
- color_resin: White
- durability_mating_cycles_max: 30
- entry_angle: Vertical
- flammability: 94V-0
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight_g: 0.692
- number_of_rows: 2
- pitch_mating_interface: 1.27mm
- pitch_termination_interface: 1.27mm
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- shrouded: Yes
- surface_mount_compatible: N/A
- temperature_range_operating_c: -40 to +105
- wire_insulation_diameter_max_mm: 1.00
- wire_size_awg: 26, 28
- wire_cable_type: Ribbon Cable
- current_maximum_per_contact_a: 1.2
- voltage_maximum_v: 250
- lead_free_process_capability: N/A
